Autocad & PDF's

A small selection of our detailed technical drawings for Type A – Internally Applied Waterproofing – Details. If you are looking for a technical drawing that isn’t here, please contact our Technical Team who will be able to assist you further.

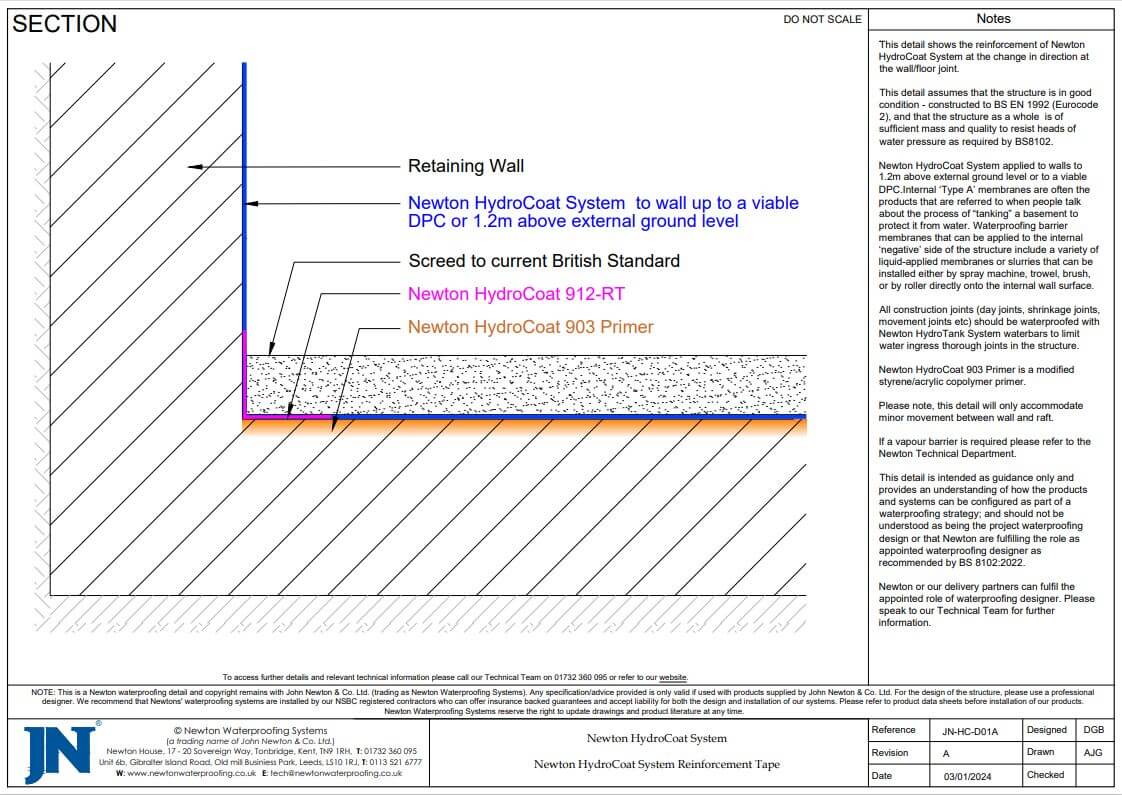

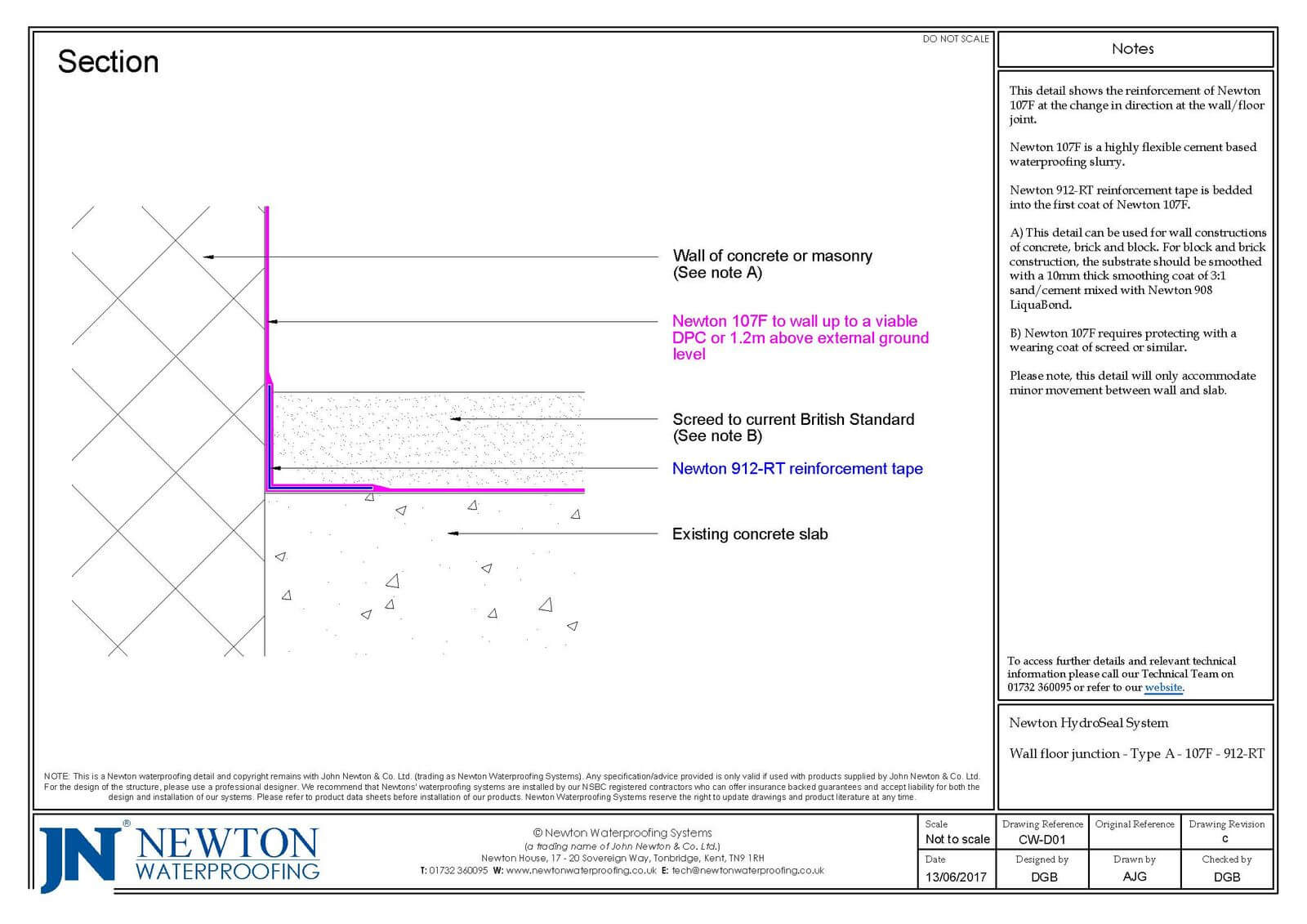

CW-D01

A HydroCoat Reinforcement Tape Detail

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

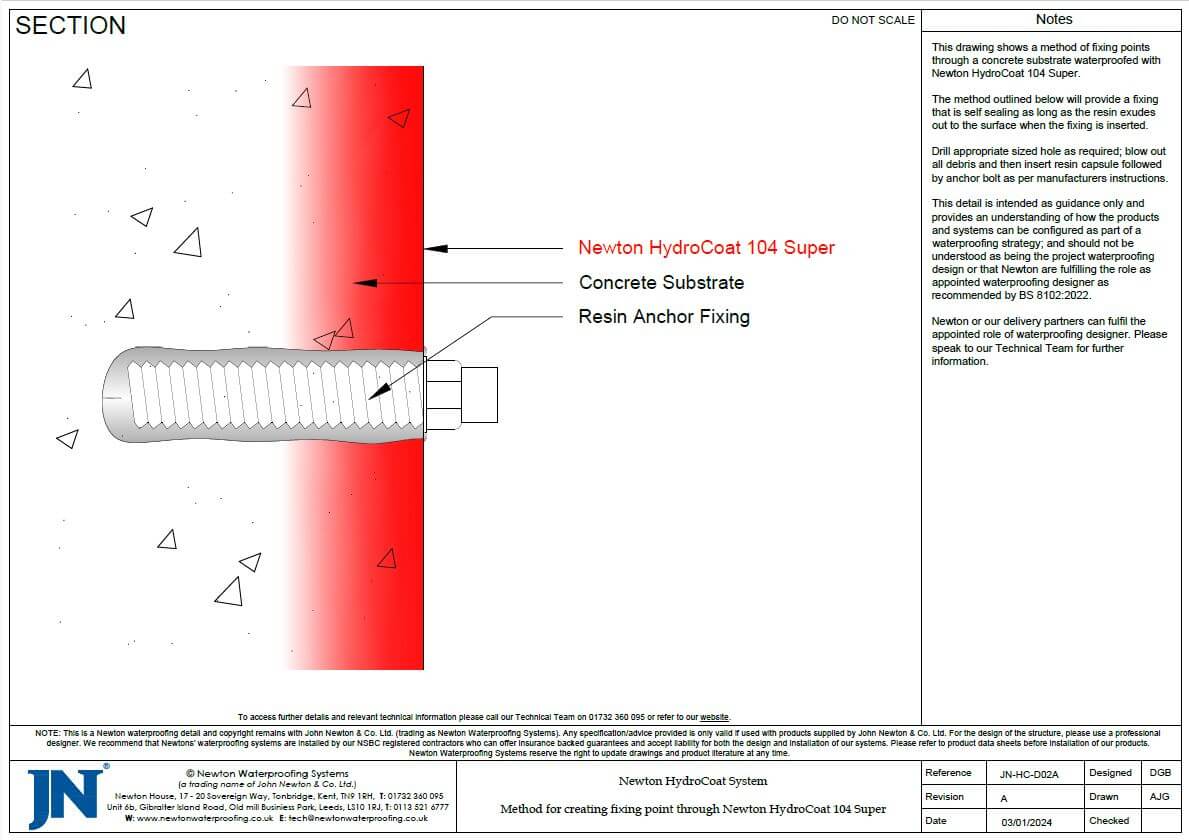

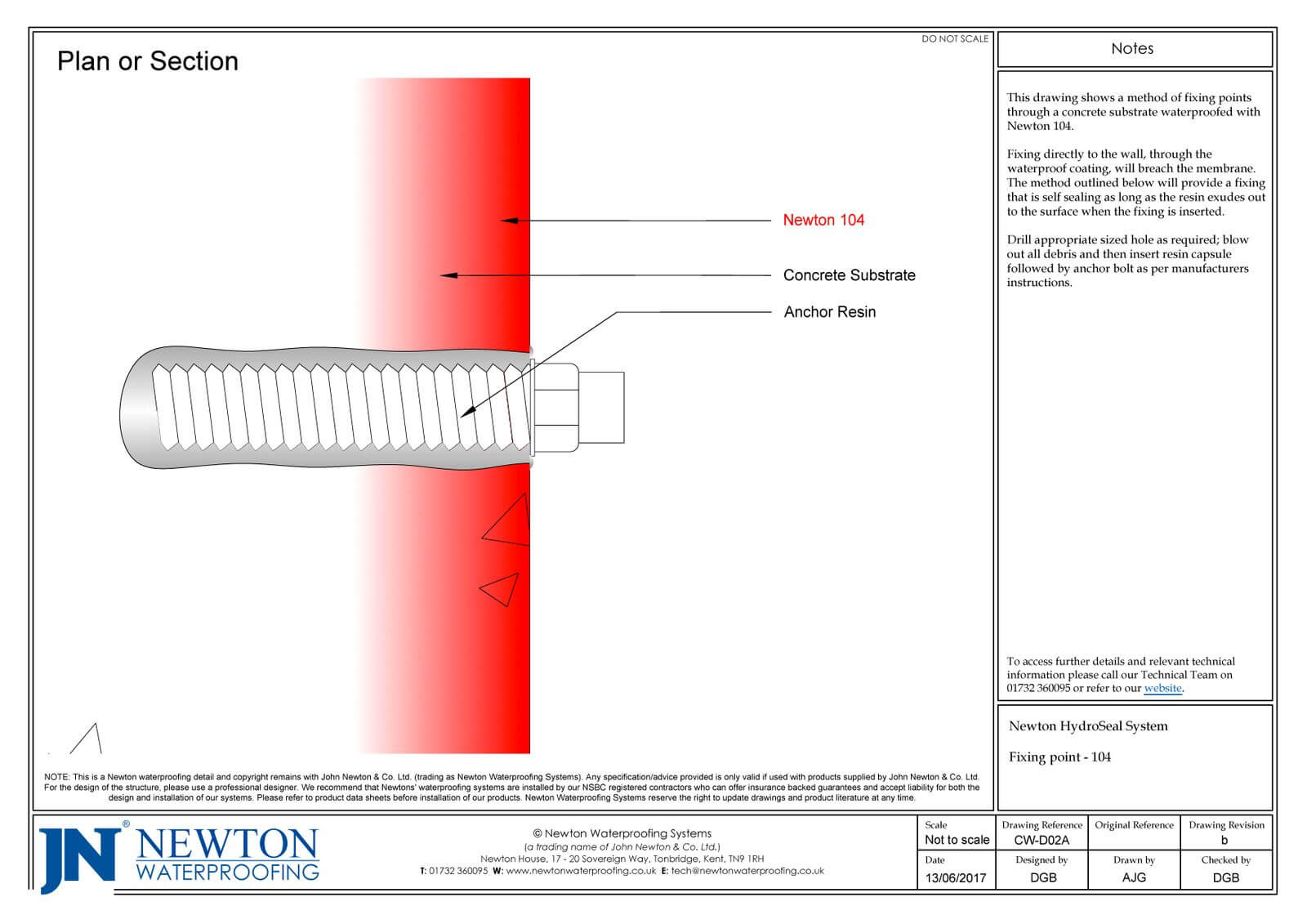

CW-D02A

Methods for creating fixing points through Newton HydroCoat 104 Super

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

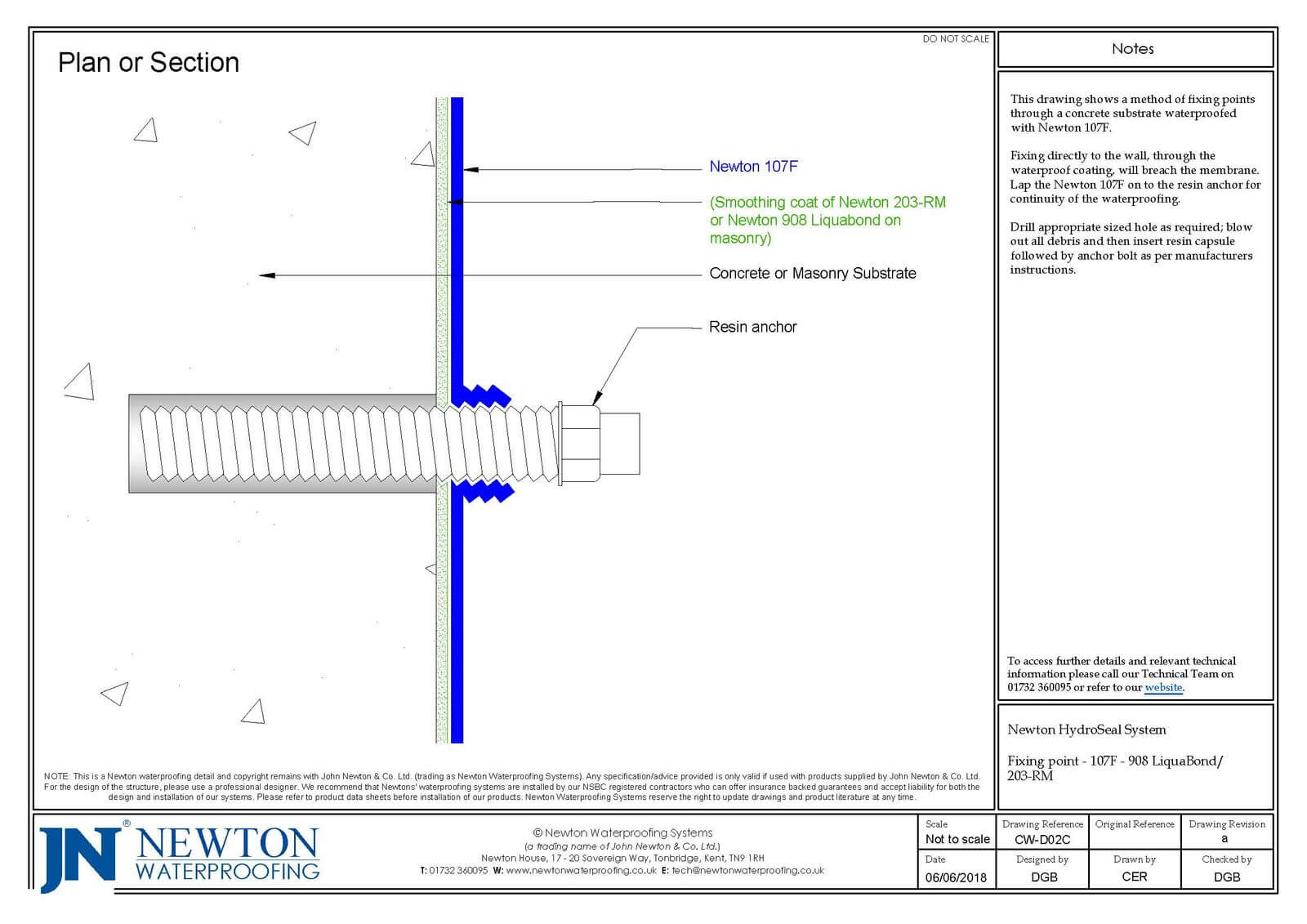

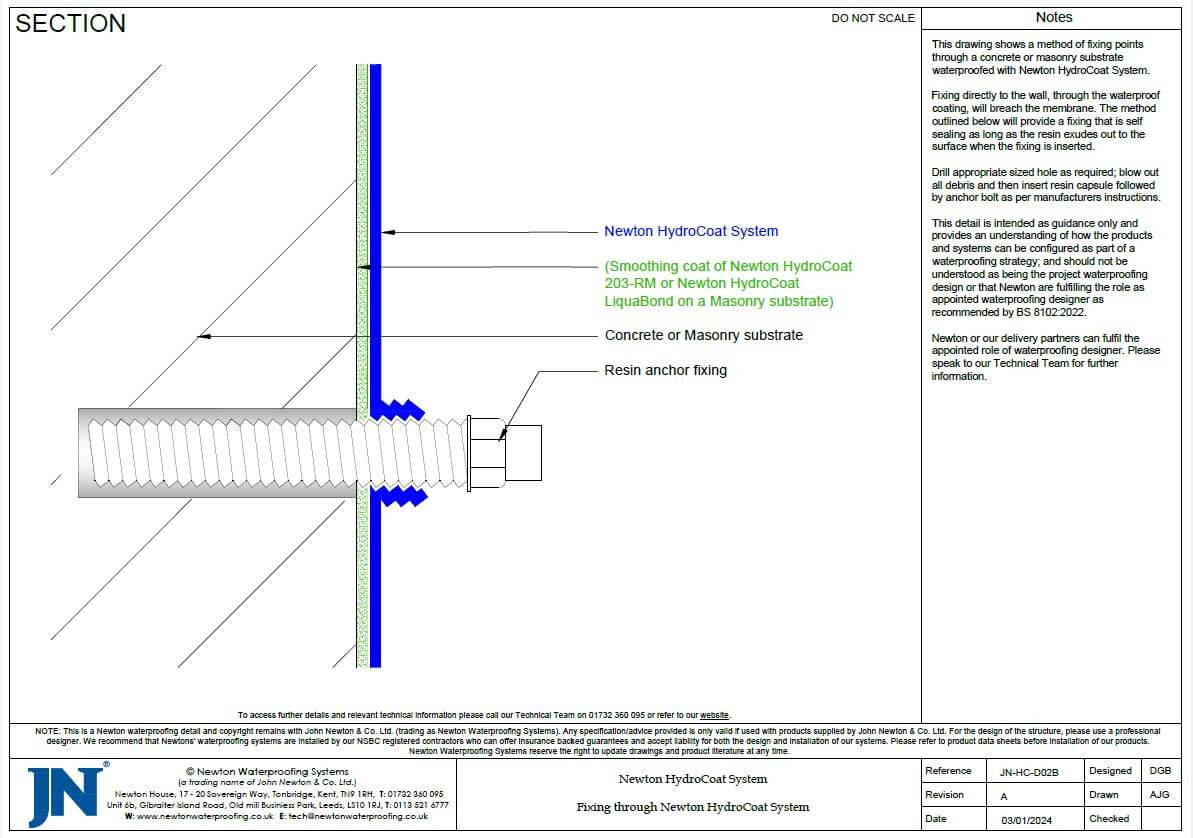

CW-D02C

Methods for creating fixing points through HydroCoat System

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

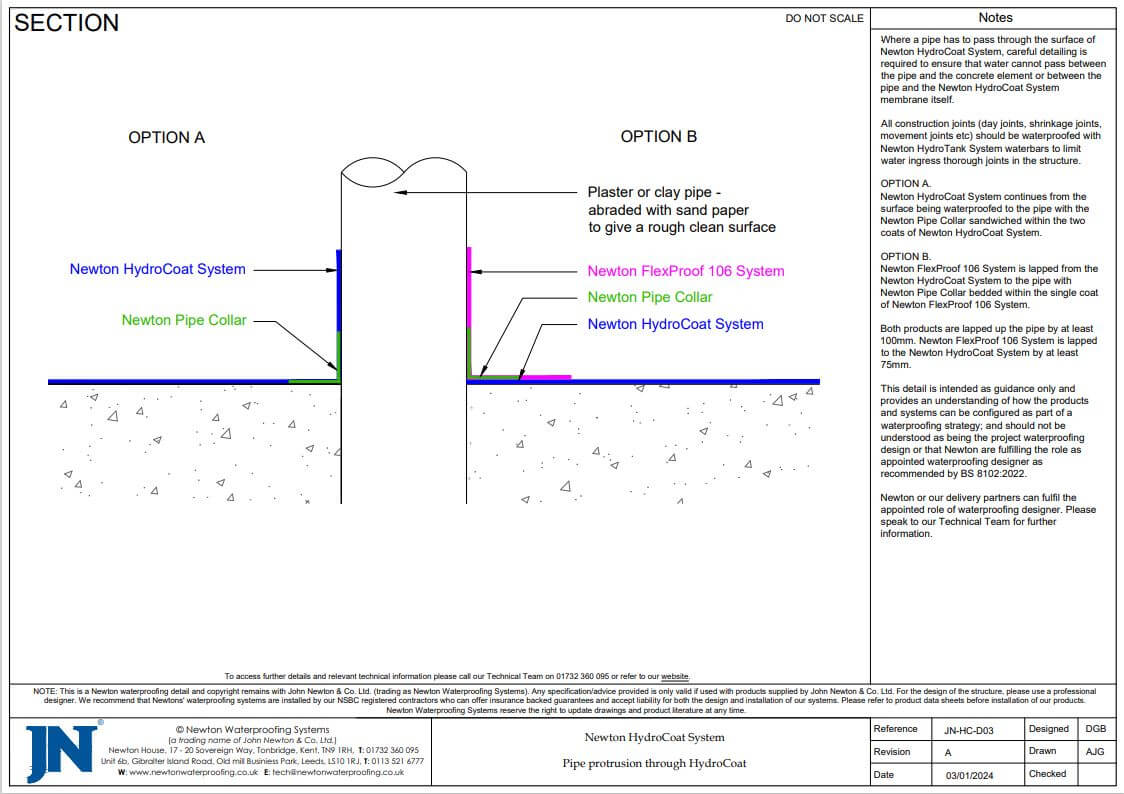

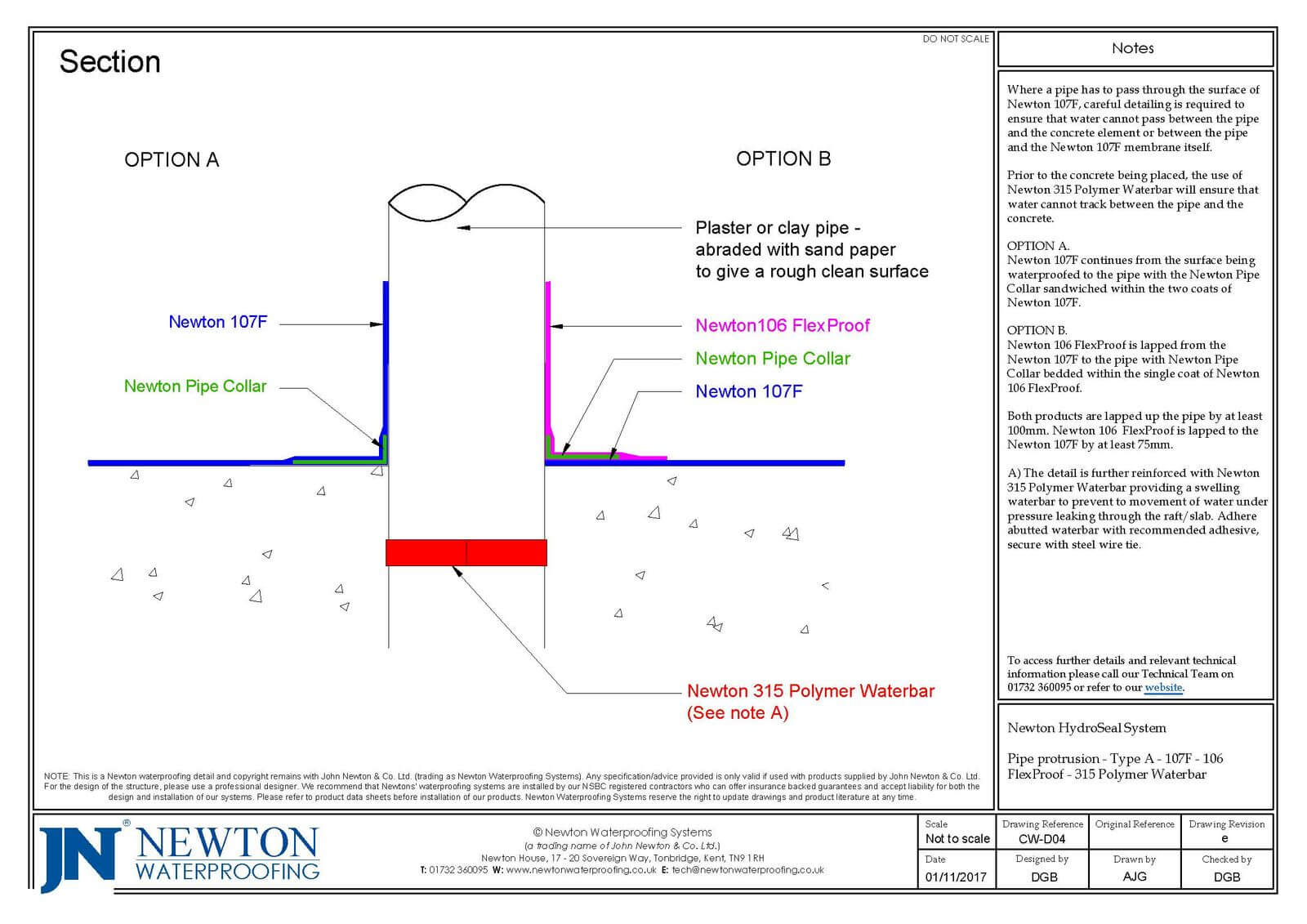

CW-D04

Pipe protrusion through Newton HydroCoat

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)
