The DAB Genix is a range of automatic macerator lifting stations, designed to deliver maximum efficiency when moving waste water from toilets, showers, washbasins or other domestic appliances that cannot be expelled by gravity.

The nature of the Genix units make them ideal for new-build, extension and renovation projects where new bathroom or kitchen units are being installed without the need for invasive structural interventions.

The Genix units

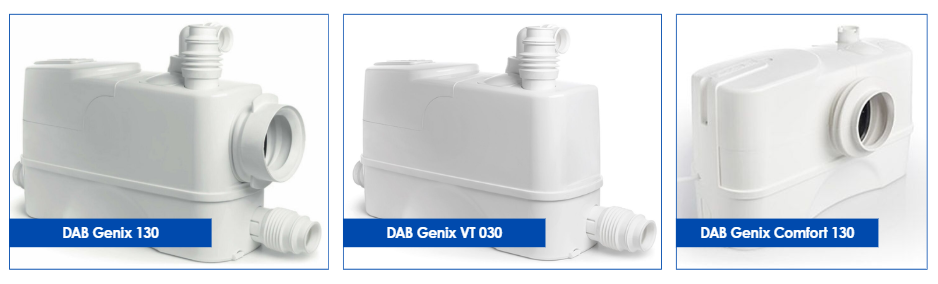

Newton supplies the Genix units in three variants – the Genix 130, the Genix Comfort 130, and the Genix VT 030:

  • The Genix 130 is suitable for dealing with waste water from toilets, urinals, washbasins, bidets, baths and showers, whilst the Comfort version has an added noise-reducing shield that reduces sound emissions by a further 5 DB.
  • The Genix VT 030 is suitable for dealing with waste water from sinks, washing machines, dishwashers, washbasins, bidets, showers and baths.

The Genix is available via Newton thanks to our partnership with DAB, who for over 40 years have been a leading player in the areas of water technology, management and movement.

  • Key Benefits
  • Warranty
  • Technical Data
  • Key Benefits

    Key Benefits

    • Designed to be long-lasting and reliable.
    • Fitted with an anti-odour system.
    • Supplied with everything required for installation, including valves, clamps, adaptors and screws.
    • Easy access for maintenance of the grinding blades and electrical components.
    • Fitted with a draining tap and supplied with a draining pipe.
    • Can pump water up to temperatures of 50°C (130 and 130 Comfort) and 75°C (VT 030).

    Warranty

    Warranty

    The DAB Genix units are supplied with a 24-month warranty, valid from the date of invoice.

    If the unit develops a fault during the warranty period, the unit can be returned for inspection, and consequently repaired or replaced, depending on the fault. The DAB Service Department will always notify you prior to carrying out any work on the unit, in order to ensure suitability.

    The warranty will be invalidated if the unit is damaged because of improper handling, storage or installation, and in such cases a repair charge may be applicable.

    For more information on the returns process, please contact the Newton Sales Team directly.

    Technical Data

    Technical Data

     Genix VT 030 Result
    Height 346 mm
    Width 456 mm
    Depth 178 mm
    Weight 10.3 kilograms
    Liquid temperature range 0°C to +75°C
    Internal protection grade IP44
    Tank capacity and delivery

    1 to 90 m3/hour

    Voltage (50 Hz) 1 x 230 V ~
    Maximum induced power (P1) 530 Watts
    Nominal motor power (P2) 0.32 Kilowatts





     Genix 130 and Comfort 130 Result
    Height 351 mm
    Width 629 mm
    Depth 178 mm
    Weight (Genix 130) 10.6 kilograms
    Weight (Genix Comfort 130) 12 kilograms
    Liquid temperature range 0°C to +50°C
    Internal protection grade IP44
    Tank capacity and delivery (EN 12050-3) Flush volumes of 6 and 9 litres
    Voltage (50 Hz) 1 x 230 V ~
    Maximum induced power (P1) 490 Kilowatts
    Nominal motor power (P2) 0.32 Kilowatts
