Newtonite 803 Membrane (Non-Meshed)

BBA certified, high-quality damp proof membrane for use above ground as an alternative to Newtonite 803 Mesh Membrane or NewLath 805 Mesh Membrane where a meshed surface is not required as a surface for direct plastering or rendering – typically where the wall finish to the damp proof membrane is timber battens, a dry-lining frame or block wall.

  • Key Benefits
  • Typical Applications
  • Technical Data
  • Key Benefits

    Key Benefits

    • Isolation of wall finish from the damp wall.
    • Does not require extensive and damaging preparation to the wall surface.
    • Speed of installation.
    • Resistant to efflorescing salts and hydrocarbon contamination.
    • Rot-proof.
    • Shallow stud profile for where space is at a premium.

    Typical Applications

    Typical Applications

    As a damp-proof membrane to isolate the wall finish from the damp wall where a meshed surface for plaster or render is not required.

    Newtonite 803 Membrane (Non-Meshed) is available in rolls 1m x 10m = 10m2 (M19) and 2m x 20m = 40m2 (M20)

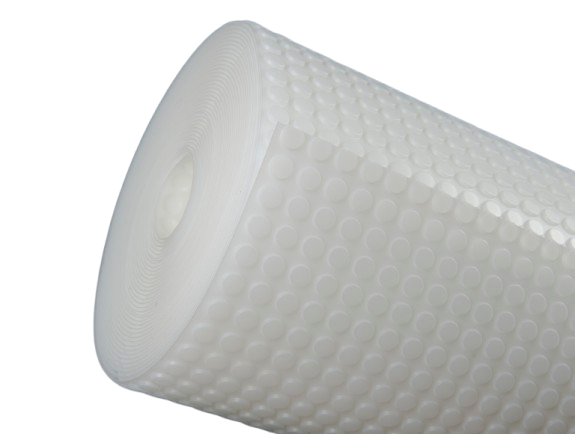

    Newtonite 803 is typically used where the wall finish to the damp-proof membrane is timber battens, a dry-lining frame or block wall. Newtonite 803 is 0.5mm thick and has a pattern of raised 3mm studs. The studs face the wall and create air channels that allow for vapour equalisation to take place between the membrane and the wall.

    Newtonite 803 is light, clean and easy to handle. It can be cut with a sharp knife, scissors or shears. The membrane is inert and is highly resistant to water, alkalies, saline solutions and organic acids, and it is not affected by minerals. It is also resistant to bacteria, fungi and other small organisms.

    Newtonite 803 is guaranteed against deterioration for 30 years, and has a life expectancy of at least 50 years (DIN 9001:2000) and is supported by BBA Certification Number 94/3010.

    Technical Data

    Technical Data

    Installed Performance Result
    Compressive strength – Temporary loading >320 kPa
    Compressive strength – Permanent loading 100 kPa
    Thermal conductivity 0.461 W/mK
    Water vapour diffusion resistance – Sd value >604m
    Resistance to fire Euroclass E
    Chemical resistance – Excellent 100%
    Oxidation resistance – Excellent 100%
