Autocad & PDF's

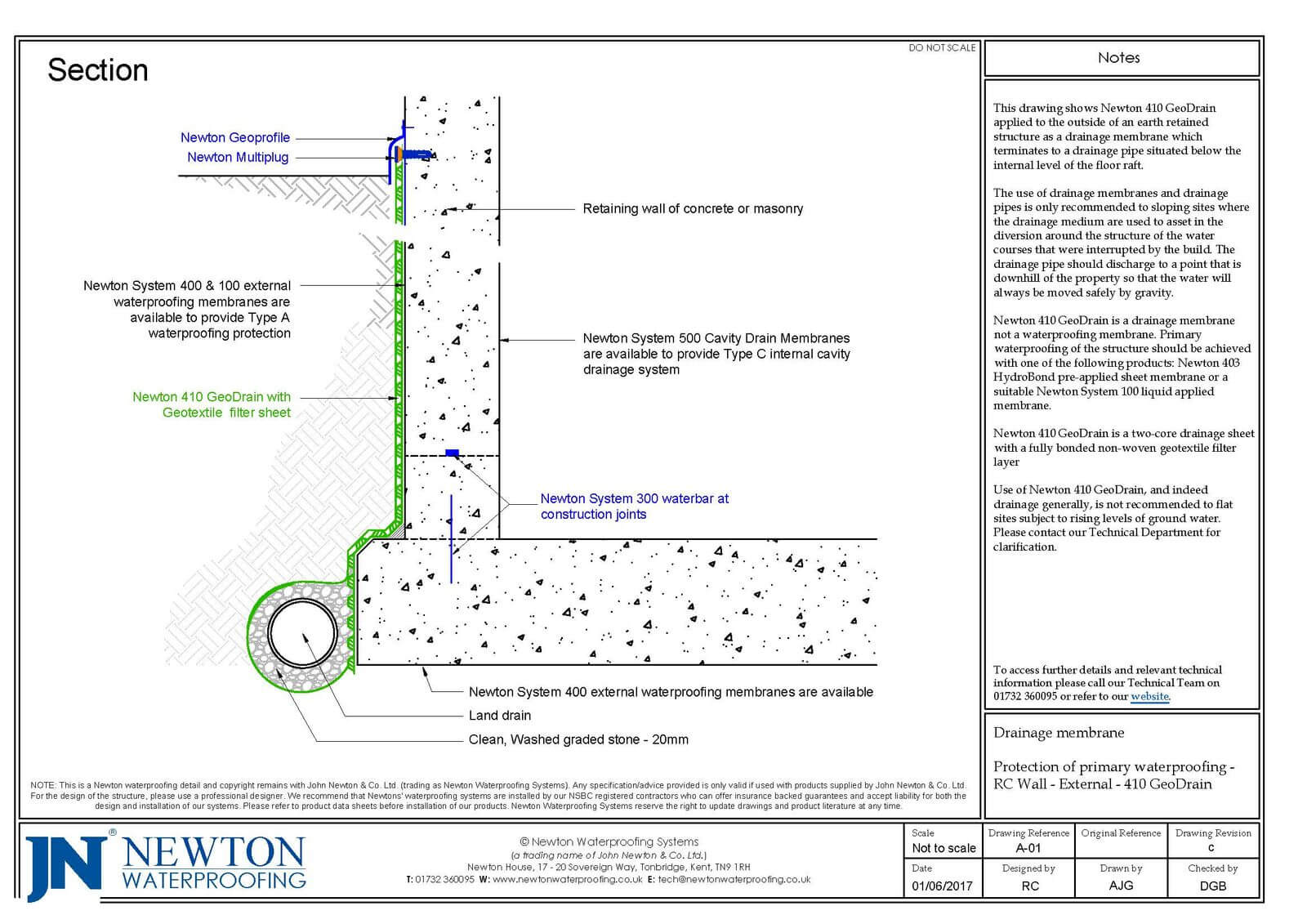

A small selection of our detailed technical drawings for Type A – Externally Applied Waterproofing – Sections. If you are looking for a technical drawing that isn’t here, please contact our Technical Team who will be able to assist you further.

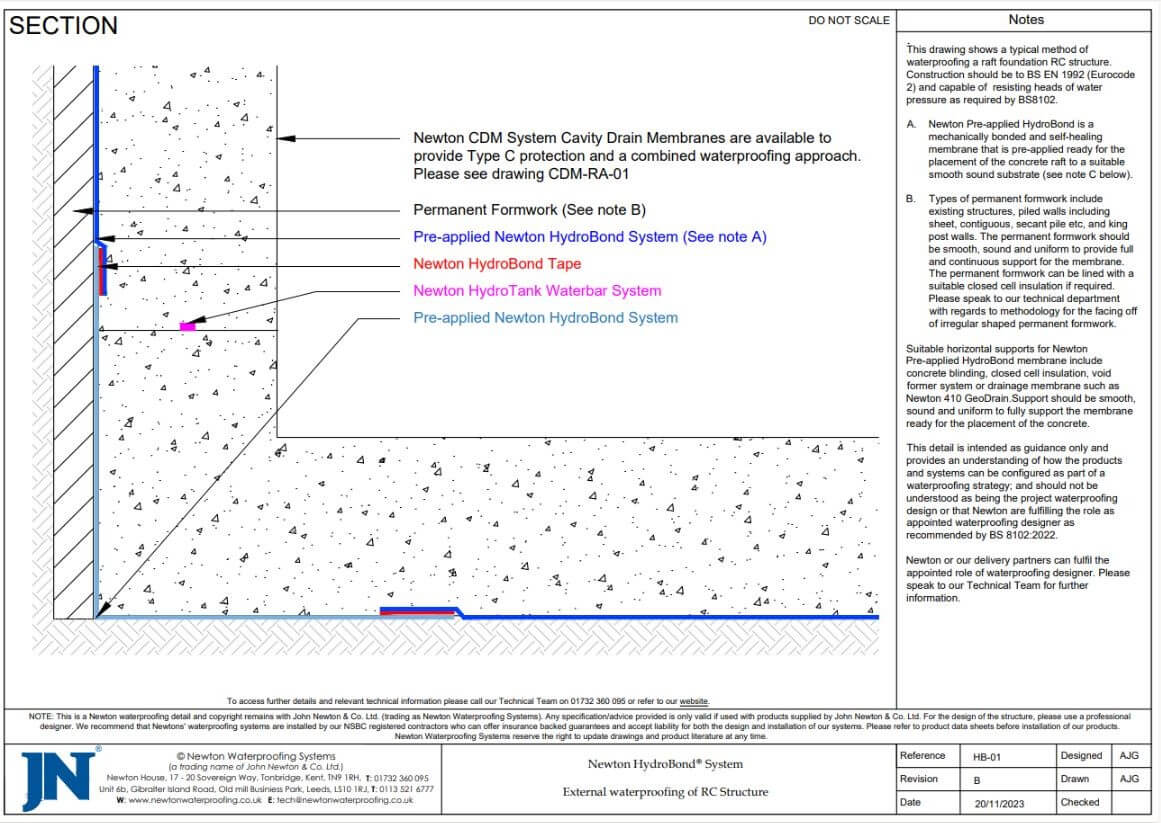

H-01

HydroBond 403 Plus to permanent formwork

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

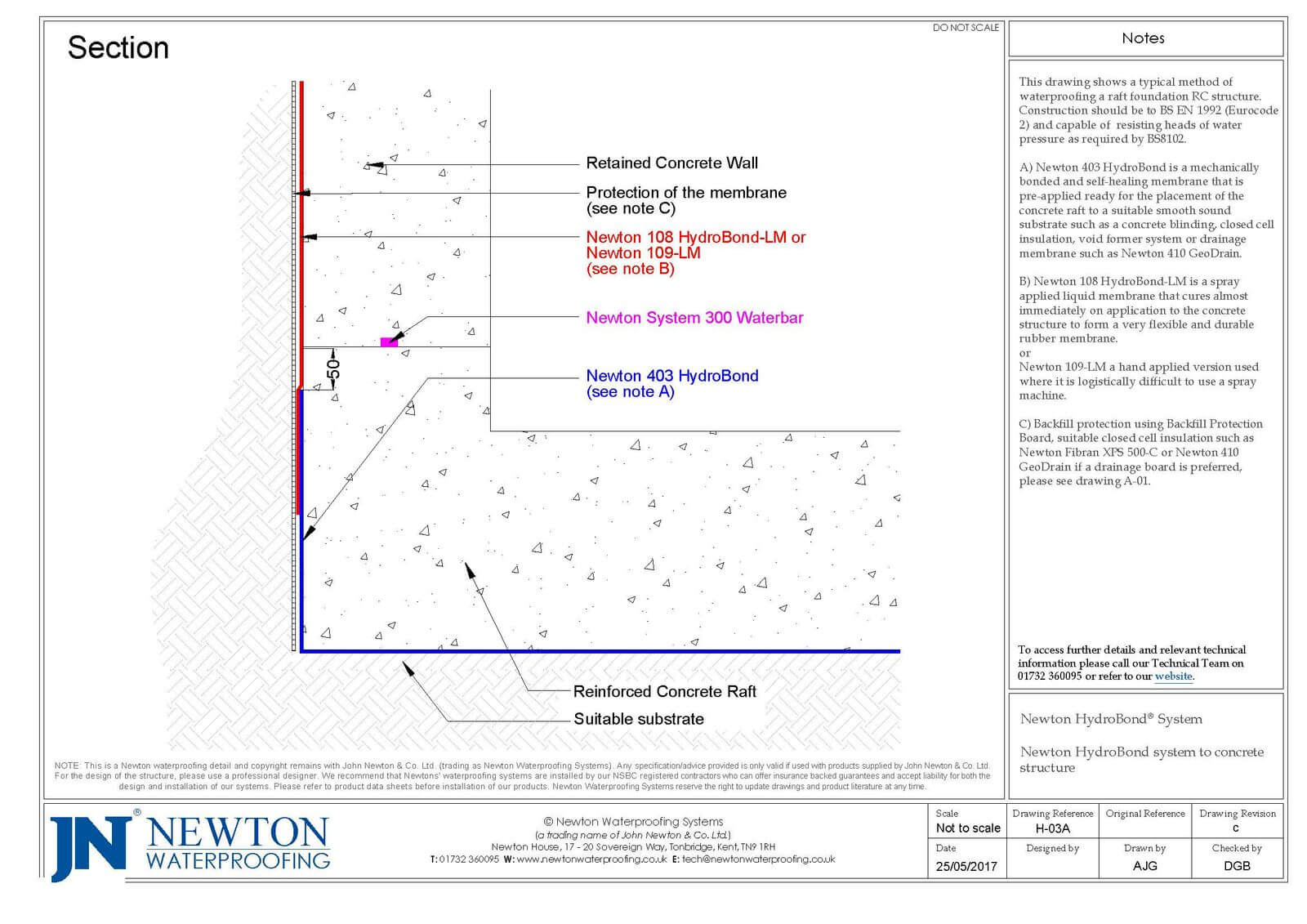

H-03A

HydroBond System to Concrete structure

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

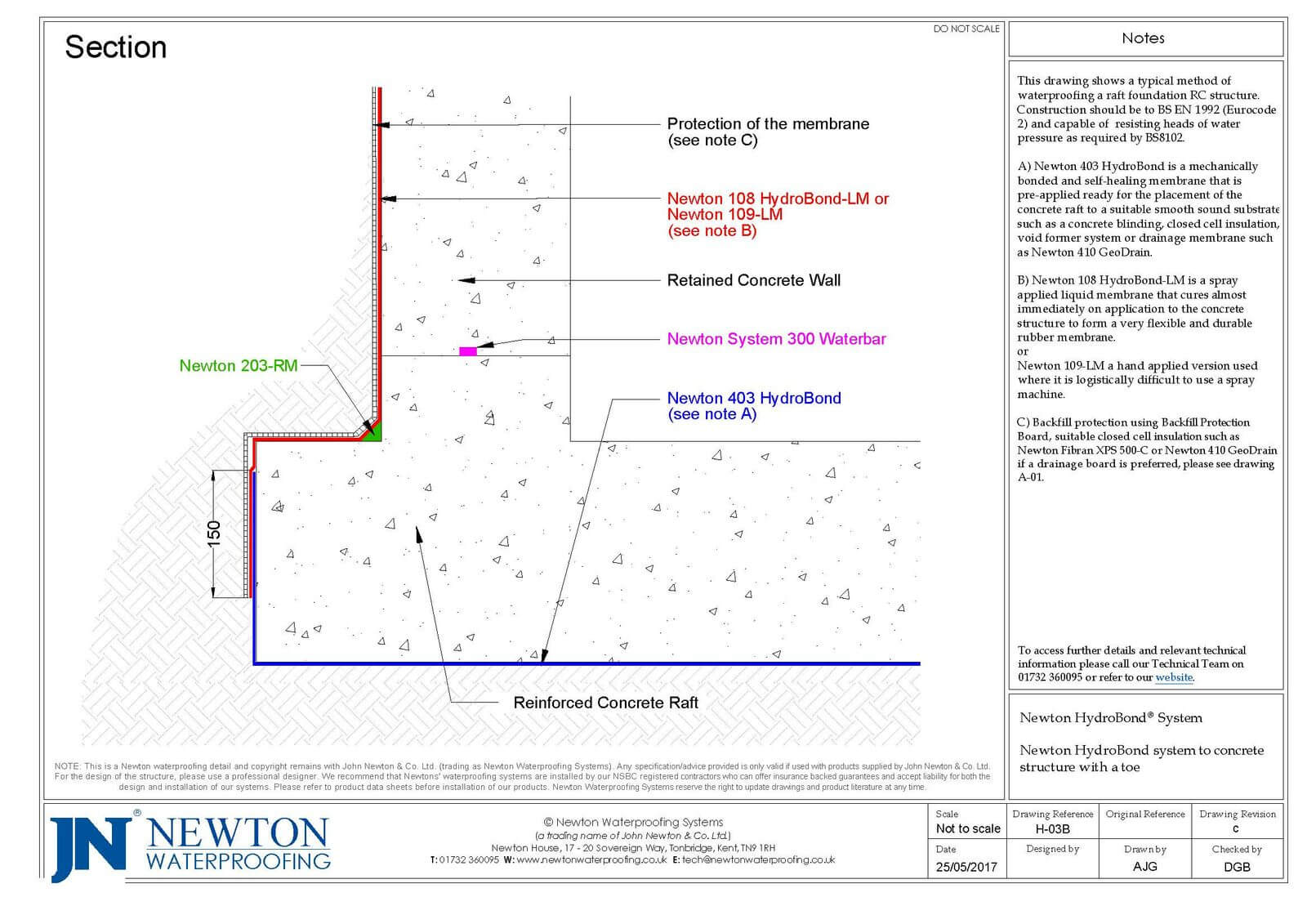

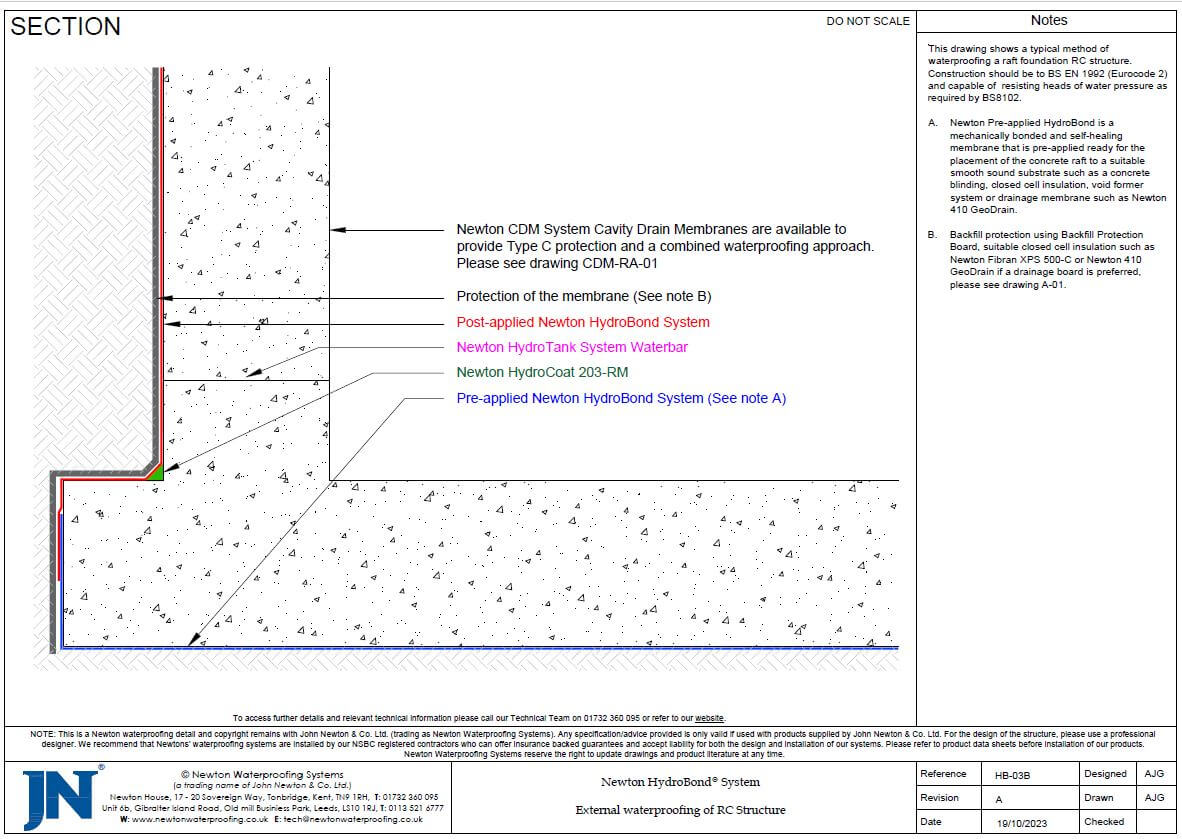

H-03B

HydroBond system to Concrete structure with toe

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

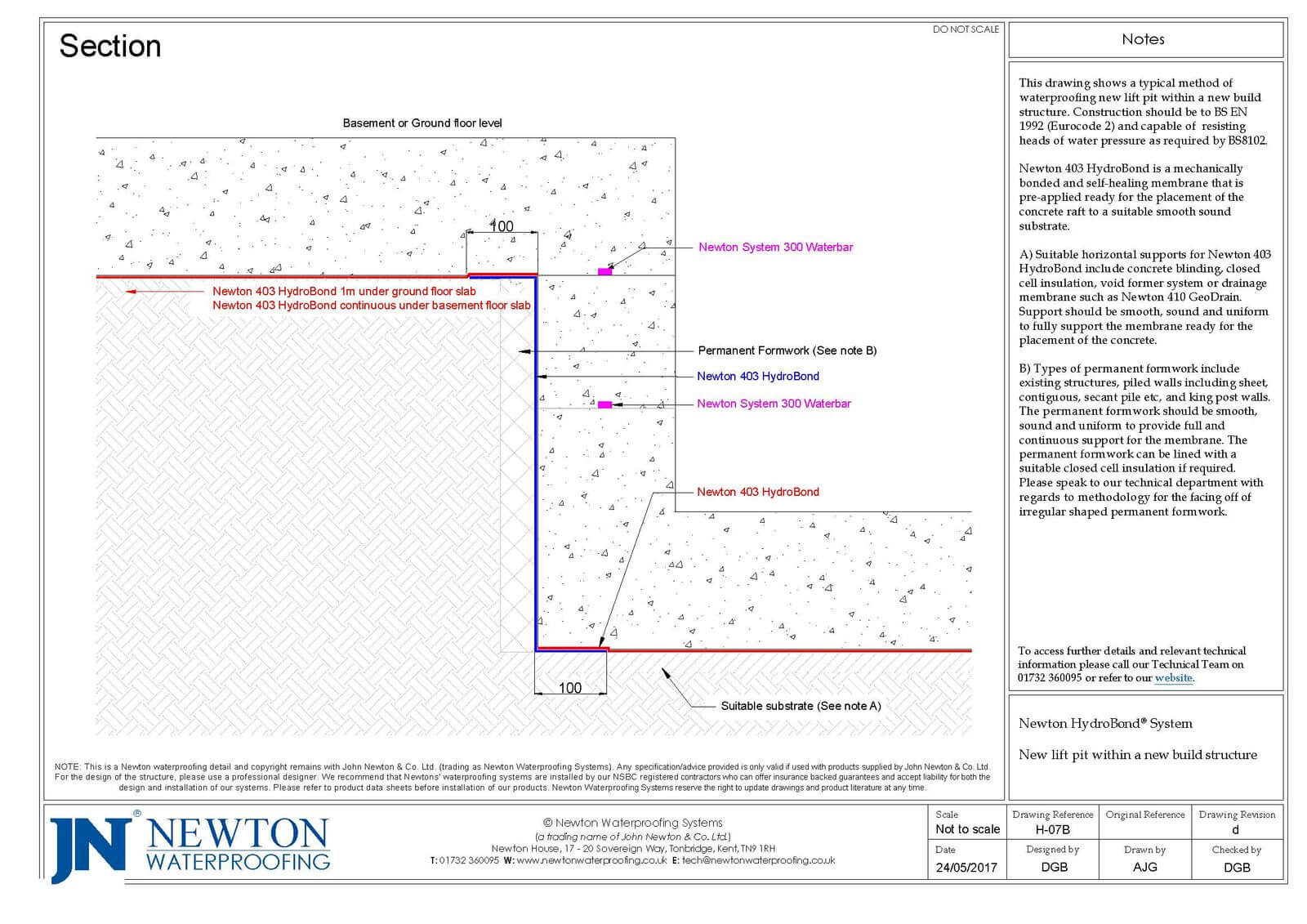

H-07B

New lift pit in new build structure

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

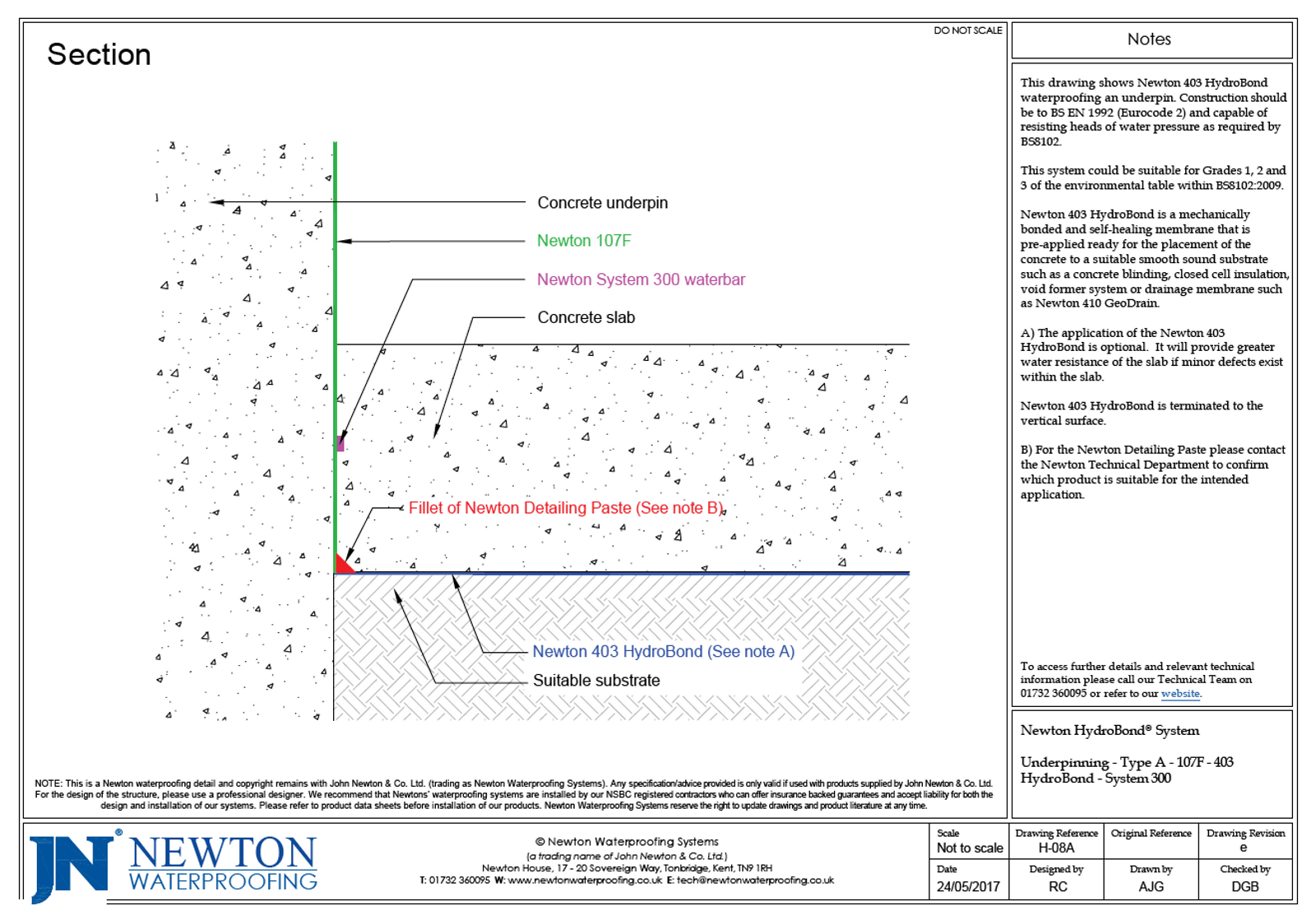

H-08A

HydroBond under slab and HydroCoat to existing concrete wall

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

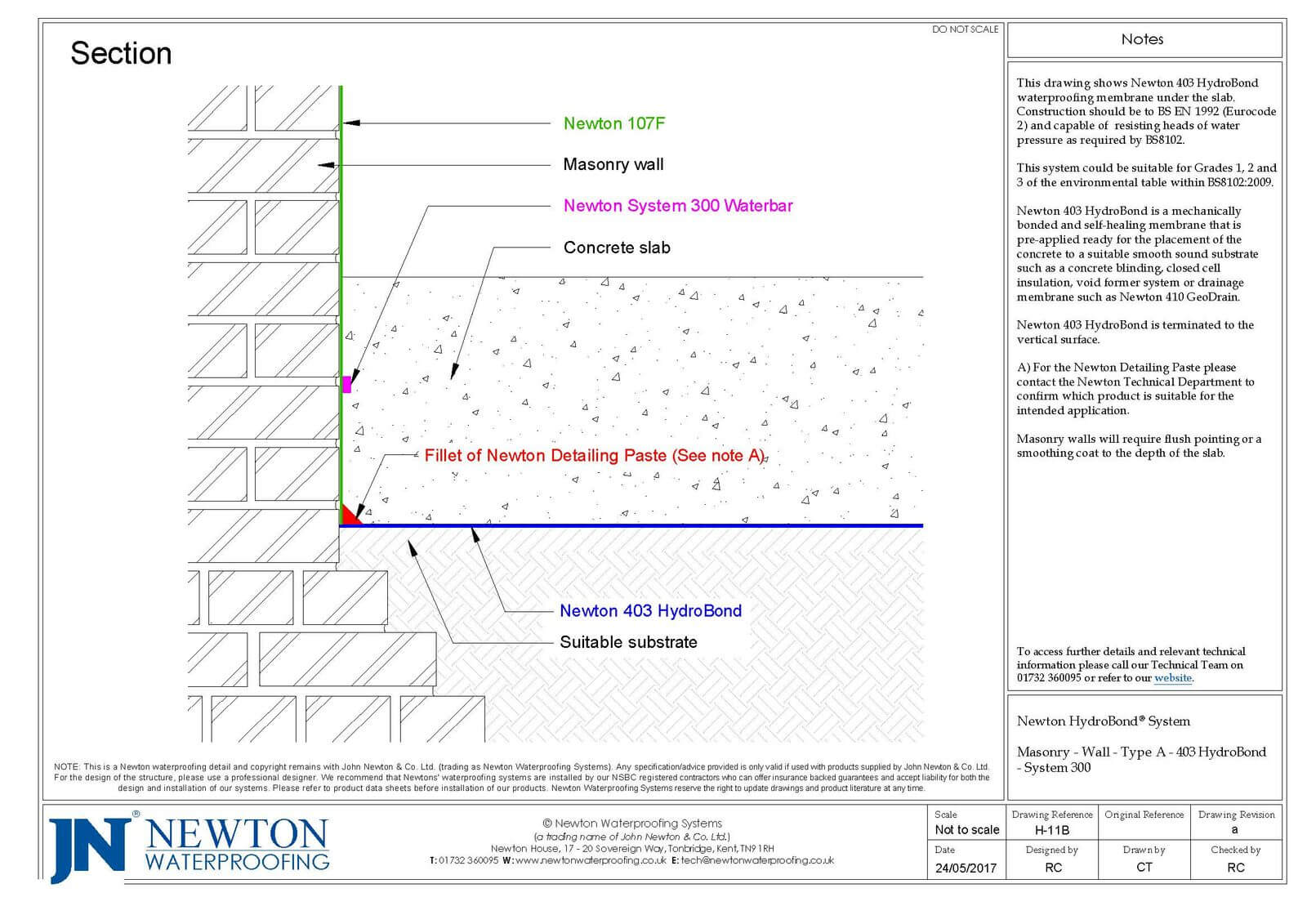

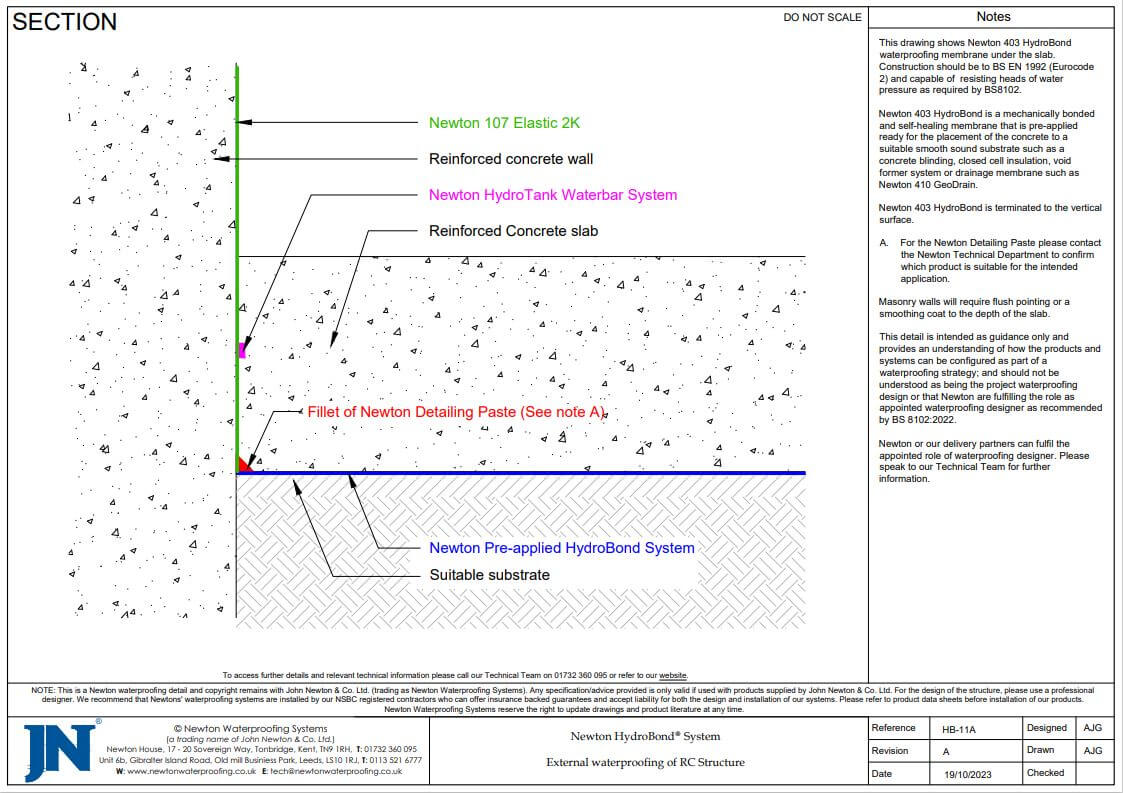

H-11B

HydroBond 403 Plus under slab and 107 to masonry wall

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

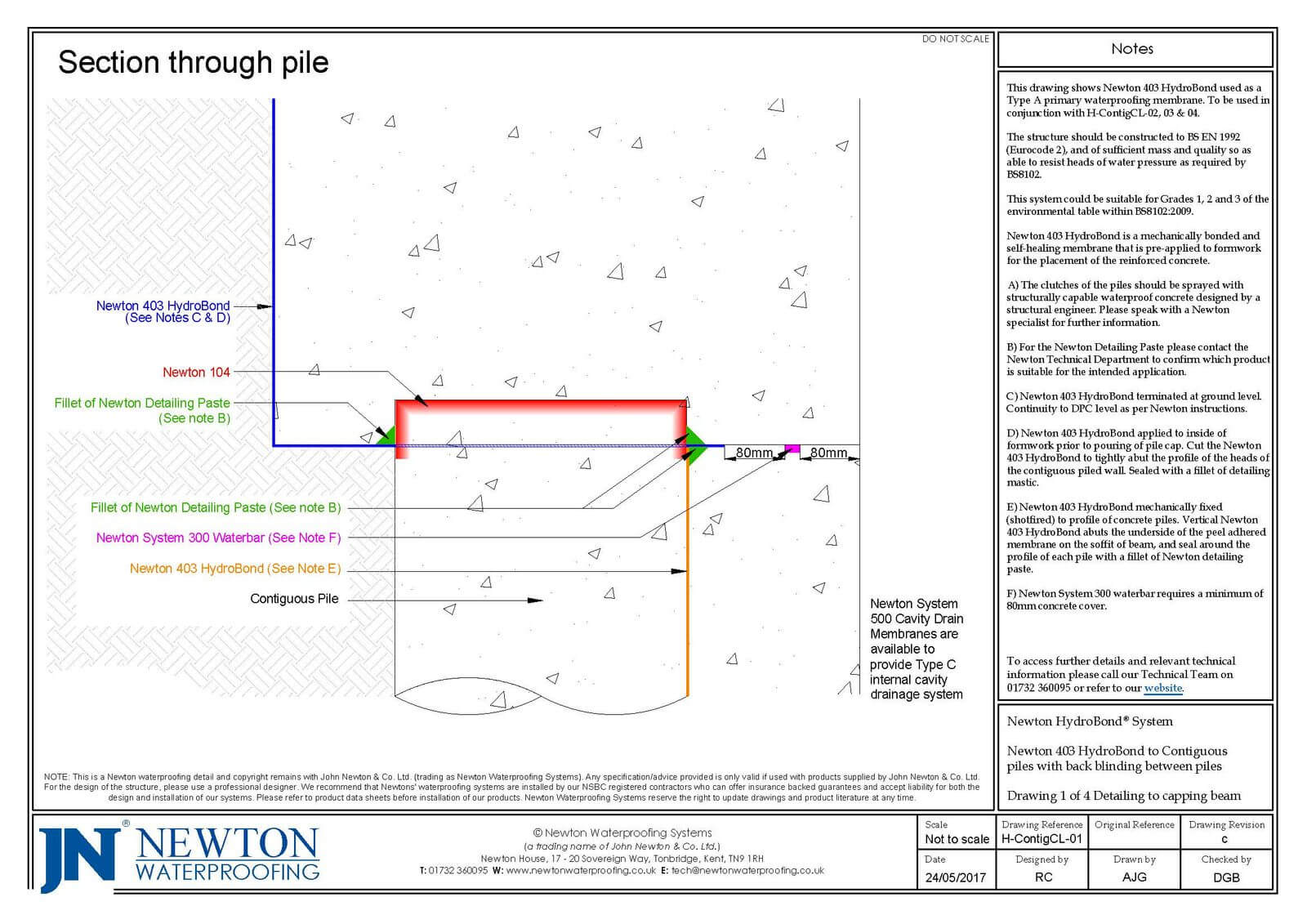

H-ContigCL

Contiguous piles with back blinding and concrete liner wall

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

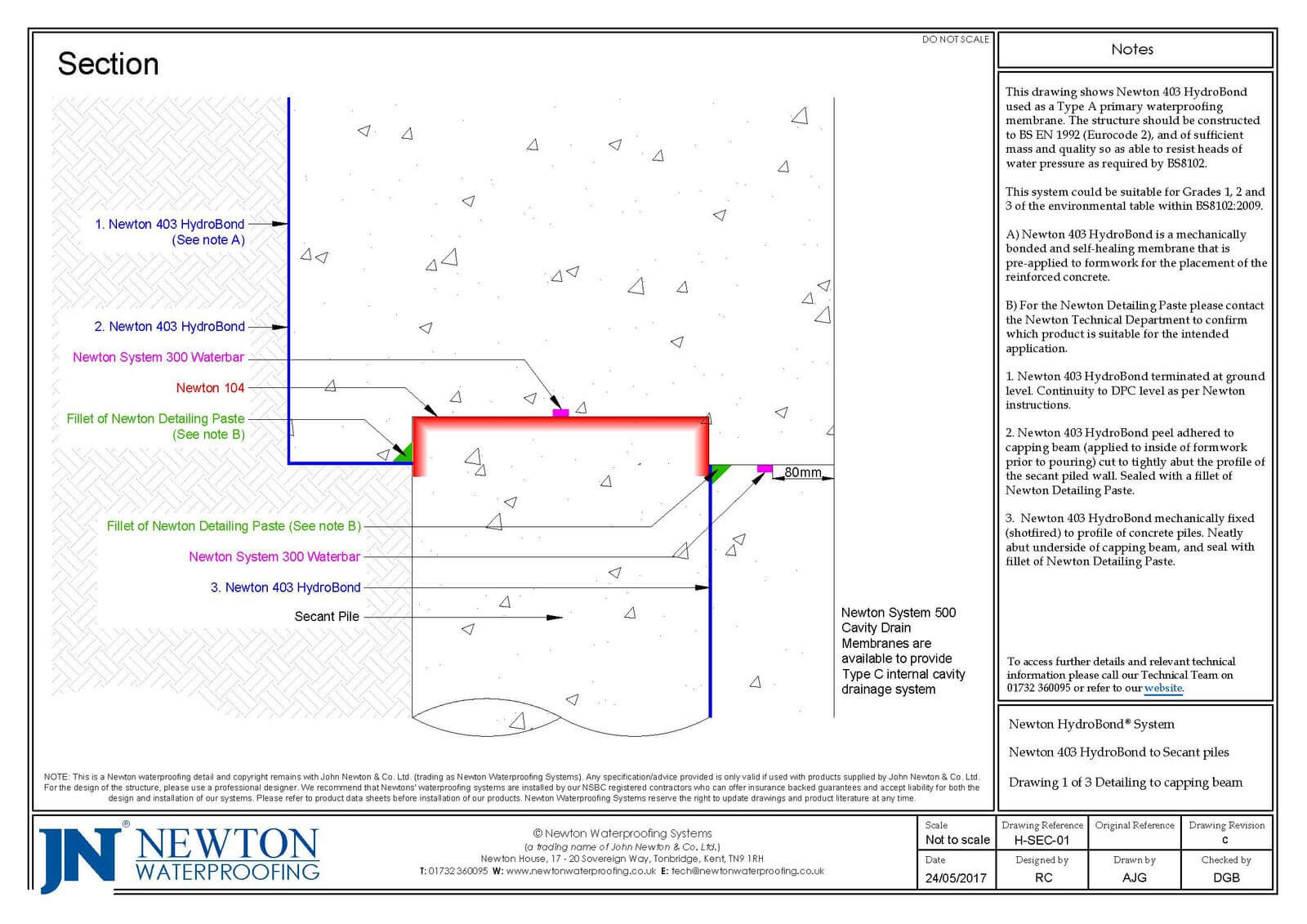

H-Secant

Secant piles with reinforced concrete liner wall

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

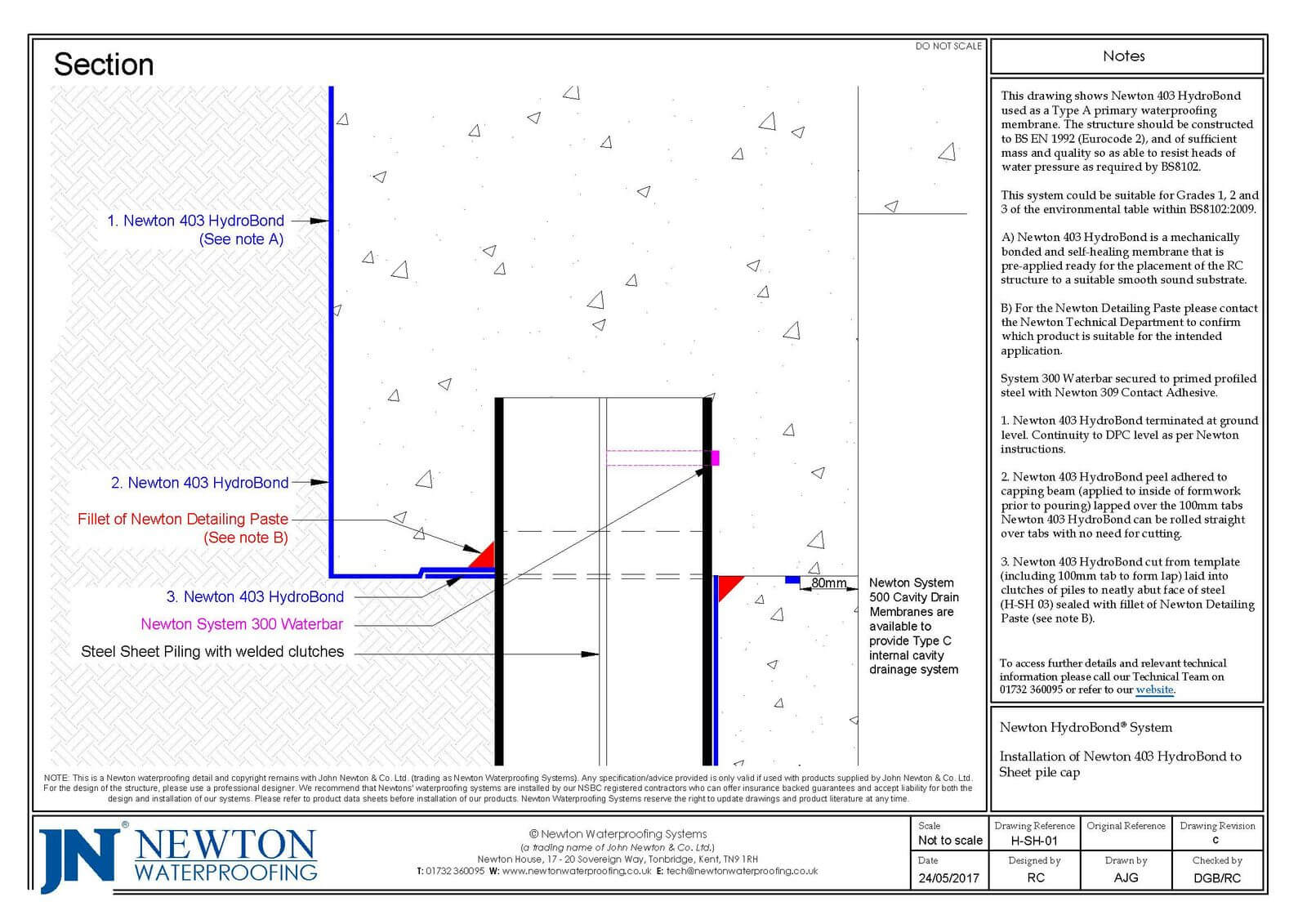

H-Sheet

Sheet piles with reinforced concrete liner wall

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)
