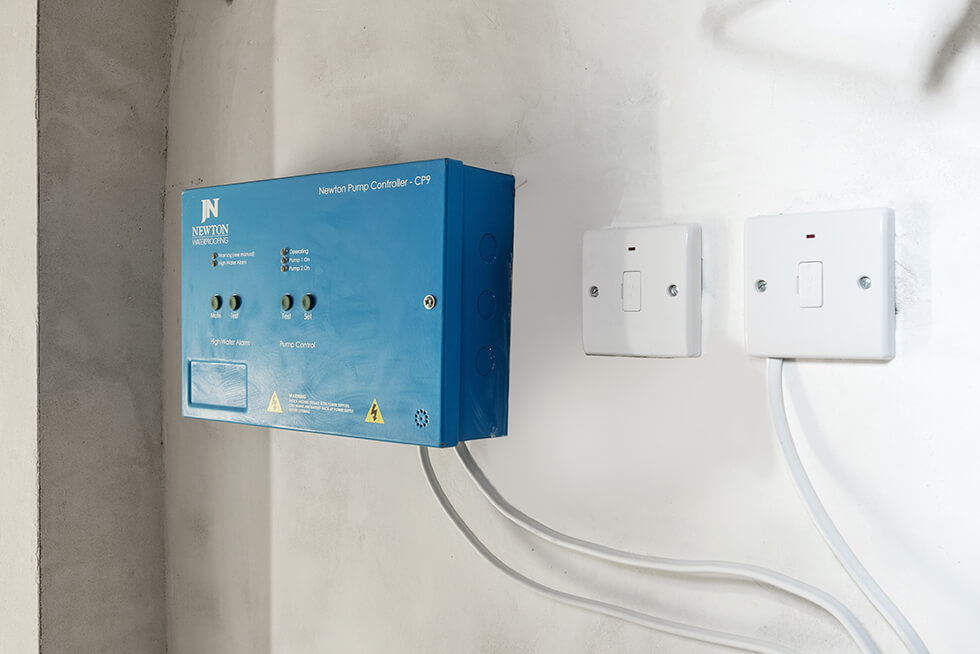

Newton Pump Controller

The Newton Pump Controller is designed to be used with matched pairs of manual versions of Newton Pumps of 250 watts to 750 watts, and provides a sophisticated, yet simple to install – twin pump control system which offers some of the features of the Newton Control Panel-Pro, but at a lower cost.

The major feature of the control system is the self diagnostic program that operates both pumps on a weekly basis to ensure that they are not stood idle for extended periods in order to prevent seizure and premature pump failure. Each pump will operate for 5 seconds, (one after the other) once per week.

The Newton Pump Controller will operate a maximum of two 750W 230V AC pumps. The panel is supplied with a vertical water level float switch and High Water Alarm float switch. The panel is designed to be used with an optional Newton Victron Battery Backup System, sized to suit the pumps and installed with sufficient battery power to ensure continued pumping during power outages.

Key Benefits

Warranty

Key Benefits

Two independent power supply inputs – One for grid mains and the other for either grid mains or a battery-backed power supply via a Newton Victron Battery Backup System.
Automatic pump duty assist.
As well as the panel’s audible alarm, an alarm output is sent to trigger the optional Newton Dialer or home alarm at the time of a pump failure.
Automatic alarm float checking – An alarm checking signal is continually monitored to confirm the alarm float cables have been fitted correctly, not been tampered with or have been disconnected.
Automatic testing of each pump every 7 days.
Test Button – Both pumps can be started from the panel for testing.
Dual power alarm – The alarm is powered under normal circumstances by 230V mains and by internal 9V battery during power outage.
Alarm sounder mute.
Pump operations counter.

Warranty

The Newton Pump Controller is supplied with a one year back-to-base warranty which is dated from either the date of purchase or a proven date of installation.

If the unit develops a fault during the warranty period, Newton Waterproofing Systems Ltd will repair or replace the unit under warranty. Contact the Newton sales office for a returns form which explains the returns procedure.

The warranty will be invalidated if the unit is damaged because of improper handling, storage or installation, and in such cases a repair charge may be applicable.

Newton Pump Controller
