HydroBond 402-CCSM

  • Total Waterproofing Strength: HydroBond 402-CCSM is a high-performance membrane for external waterproofing of below-ground structures. Its LDPE and geotextile fleece composite ensures excellent crack-bridging, forming a high-strength bond for unbeatable peel adhesion.

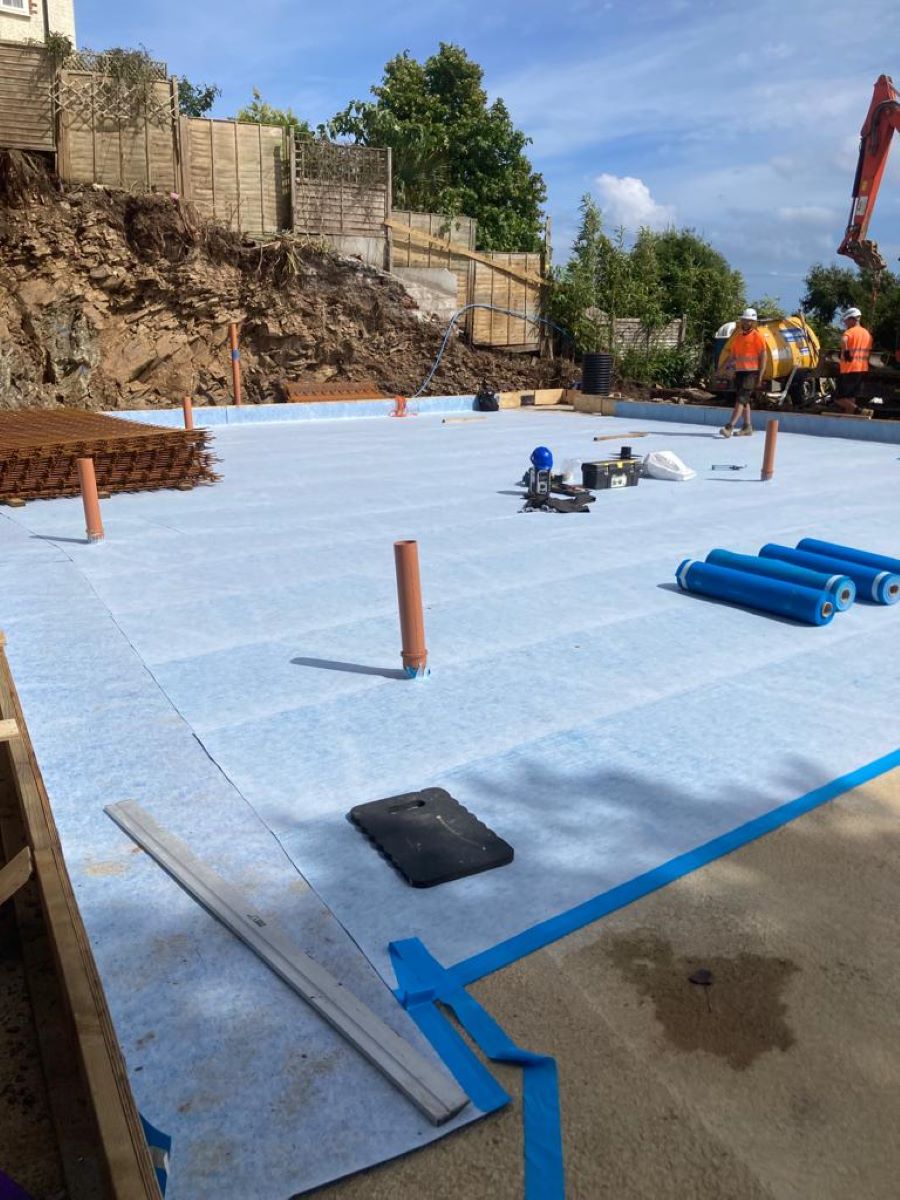

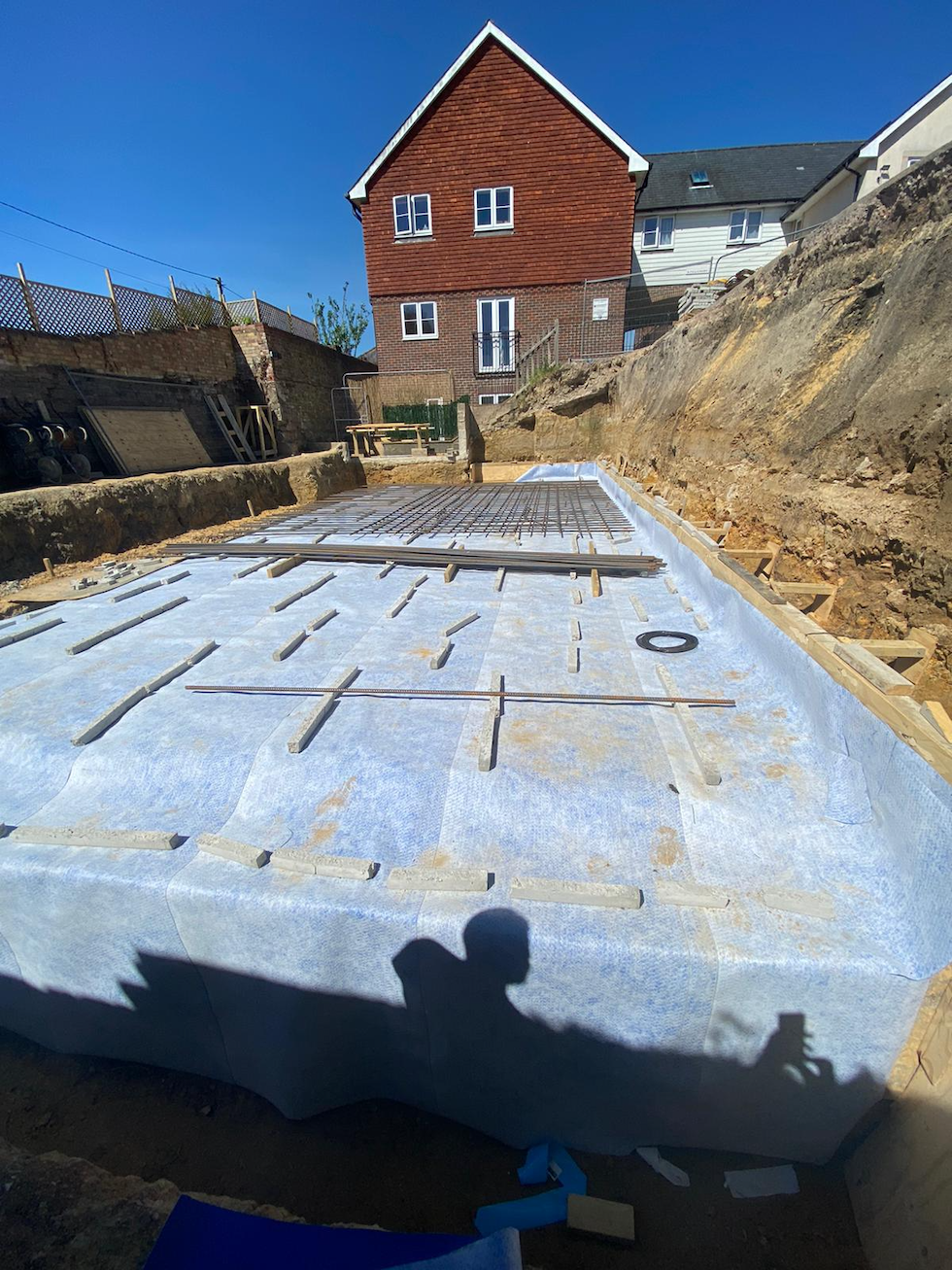

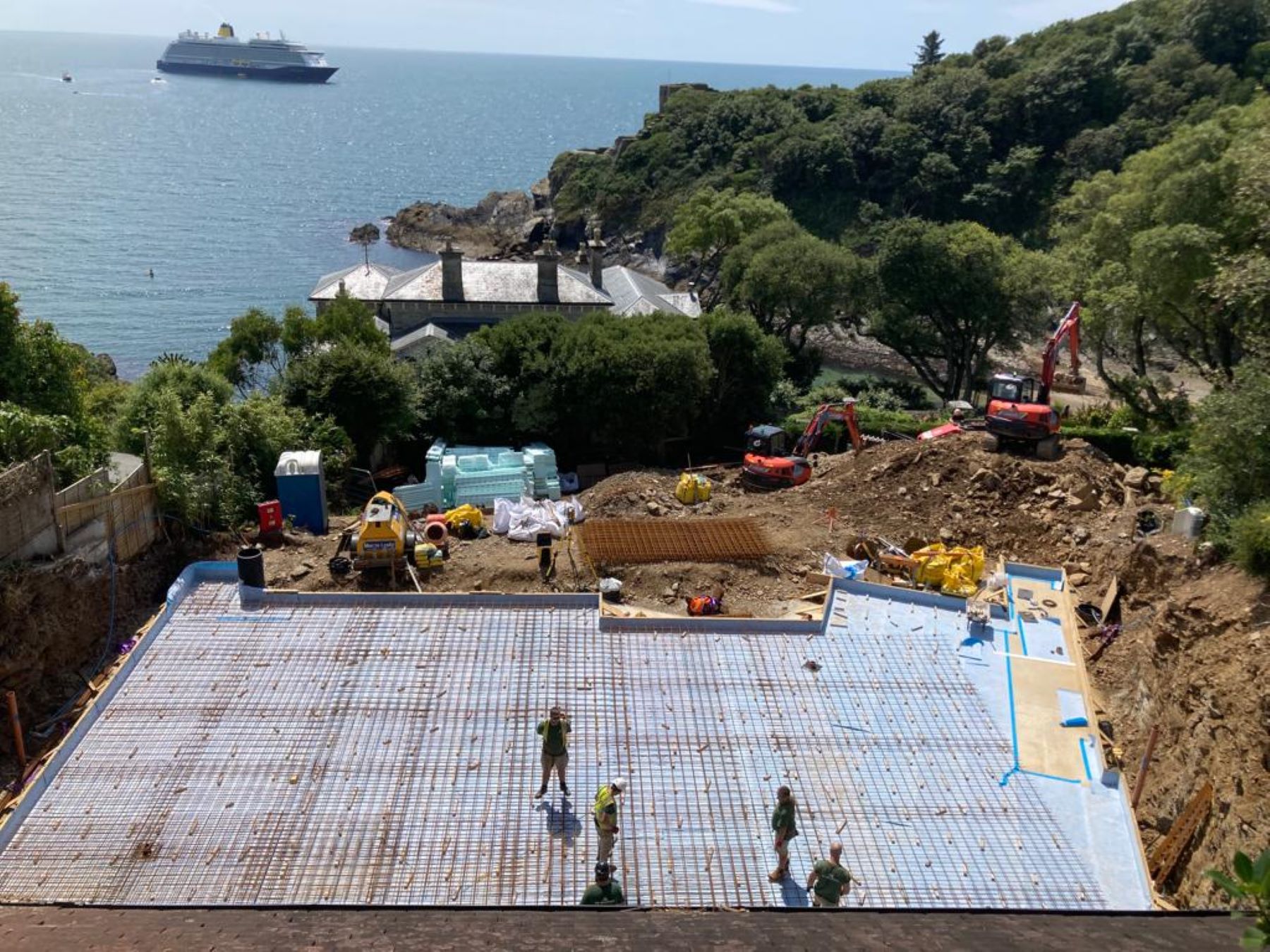

  • Pre Applied: Laid above blinding or fixed to building line prior to the placement of the concrete. When used with other Newton HydroBond System products, it provides a coordinated approach to comprehensive structure waterproofing.
  • No Compromise, No Leaks: HydroBond 402-CCSM guarantees a watertight seal for foundations, basements, tanks, culverts, and tunnel bases. Exceptional crack-bridging and peel adhesion qualities ensure protection even in challenging conditions.

HydroBond 402-CCSM is a high performance membrane for the external waterproofing of below-ground foundation structures, basements, water holding tanks, culverts and tunnel bases.

A composite of LDPE and a non-woven geotextile fleece, the membrane has excellent crack-bridging capabilities at places where cracks occur within the concrete. When pre-applied before the concrete, the wet concrete is absorbed into the fleece, integrally bonding it to the membrane. This results in a high-strength bond with exceptional peel adhesion qualities, preventing water migration between the concrete and the membrane, even when damaged.

HydroBond 402-CCSM can be used with other Newton HydroBond System products to provide a coordinated and combined approach to the waterproofing of the whole structure that includes protection against water penetrating through construction joints, through and around service entries and to movement joints.

  • Key Benefits
  • Typical Applications
  • Suitable Substrate
  • Technical Data
  • Key Benefits

    Key Benefits

    • Full mechanical bond to the concrete prevents water migration between membrane and structure
    • Very flexible – Resistant to movement and fissures in substrates
    • Unique pre-installed dual component (chemical fusion bond) adhesive laps at membrane selvedge

    Typical Applications

    Typical Applications

    • As a continuous Type A, externally applied waterproofing membrane and radon barrier to earth-retained structures
    • Below slab DPM and Radon DPM without the need for smooth blinding and protection

    Suitable Substrate

    Suitable Substrate


    • Concrete blinding
    • Compacted type 1 hardcore
    • Compacted sand

    The following can be placed above the blinding or hardcore prior to the installation of 402-CCSM:


    • Existing structure
    • Secant or contiguous concrete piles
    • Metal sheet piles
    • Diaphragm walls
    • King post wall
    • Sufficiently stable ground such as clay or chalk
    • Temporary timber shuttering/formwork

    Technical Data

    Technical Data

    Installed Performance Results
    Service temperature -40ºC to +100ºC
    Adhesion to concrete – Pre-applied 0.55 N/mm²
    Adhesion to concrete – Post-applied 0.55 N/mm²
    Lateral watertightness – Pre-applied (28 day test) 500 kPa
    Lateral watertightness – Post-applied (7 & 28 day test) 120 kPa
    Elongation at break (Machine) 29.3%
    Elongation at break (Traverse) 53.3%
    Tensile strength (Machine) 684 N/50 mm
    Tensile strength (Traverse) 477 N/50 mm

    Watertightness – 60 kPa for 24h

    Watertightness – 400 kPa for 72h Watertight
    Resistance to static loading – 20 kg load Watertight
    Resistance to impact – AI plate – 200 mm drop Watertight
    Resistance to impact – EPS panel – 700 mm drop Watertight
    Joint seam strength – 80mm adhered overlap 423 N/50 mm
    Resistance to tearing – Nail shank – Machine direction 252 N
    Resistance to tearing – Nail shank – Across 306 N

    Durability against chemicals – 23°C for 12 weeks


    Durability against chemicals – 60 kPa for 28 days


    Durability against thermal ageing – 70ºC for 12 weeks


    Durability against thermal ageing – 60 kPa for 24 hours


    Compatibility with Bitumen – 70ºC / 28 days


    Compatibility with Bitumen – 60 kPa / 24 hours


    Water vapour diffusion resistance – Sd value

    365 m

    Water vapour diffusion resistance – μ value

    301653 μ

    Water vapour diffusion resistance

    1825 MNs/g

    Radon gas diffusion coefficient

    0.39 x 10-12 m2/s-1

    Resistance to fire Euroclass E
