CDM System Ancillaries

Complete system integrity: Ensure the full integrity and longevity of the Newton CDM waterproofing system with expertly designed, compatible accessories.
Faster, simpler installation: Speed up installation time and increase accuracy with ready-to-use, task-specific components for every common on-site scenario.
Effective moisture protection: Protect internal finishes and structural elements by addressing condensation and detailing challenges before they become issues.

Ancillary Products for Use with the Newton CDM System – a selection of specialist ancillary products that are critically important for the correct installation of our cavity drain waterproofing membranes.

Membrane: CDM 503
Fixing Plug: CDM Multiplug
Jointing Tape: CDM Overtape
Repairs: CDM Overtape

Membrane: CDM 503 Mesh
Fixing Plug: CDM Multiplug
Jointing Tape: Mesh Tape
Repairs: Mesh Tape

Membrane: CDM 508
Fixing Plug: CDM Multiplug
Jointing Tape: CDM Tape
Repairs: CDM OverTape

Membrane: CDM 508 Mesh
Fixing Plug: CDM Multiplug
Jointing Tape: Mesh Tape
Repairs: Mesh Tape

Membrane: CDM 520 eco Floor
Fixing Plug: N/A
Jointing Tape: CDM Tape
Repairs: CDM OverTape

Back-Box Liners
Pre-formed to receive electrical pattress boxes, joists, beams and pipes

Key Benefits

Typical Applications

Available across the UK

Key Benefits

Wide Range of Fixings: Includes MultiPlugs, NuSeal Plugs, and Brick Plugs to suit all substrates from concrete to vaulted ceilings, ensuring secure membrane attachment in every application.
Structural Integration: Helical MultiPlug Ties allow for the tying in of internal walls to the waterproofing system, maintaining structural continuity.
Sealing Confidence: Butyl-based CDM Tape, OverTape, and Rope provide high-performance sealing for membrane overlaps and detailed 3D junctions.
Thermal Insulation Compatibility: Insulation Fixing Plugs provide reliable fixing of insulation boards where lightweight floor finishes are planned.
Condensation Management: Condensation Strips channel surface condensation directly into the drainage system, protecting internal finishes from moisture damage.
Preformed Detailing Accessories: Pipe Collars, Pipe Sleeves, Joist Liners, and Back-Box Liners offer precise, waterproof detailing around penetrations and structural components.

Typical Applications

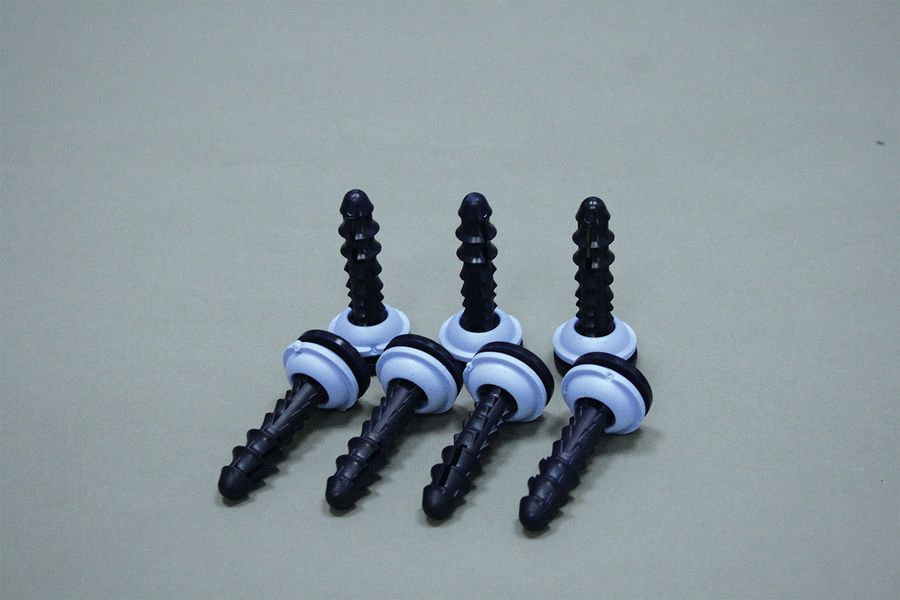

CDM MultiPlug (A1) – For securing Newton System 500 membranes to the wall and for providing a fixing point for 5mm screws and the CDM Helical MultiPlug Tie

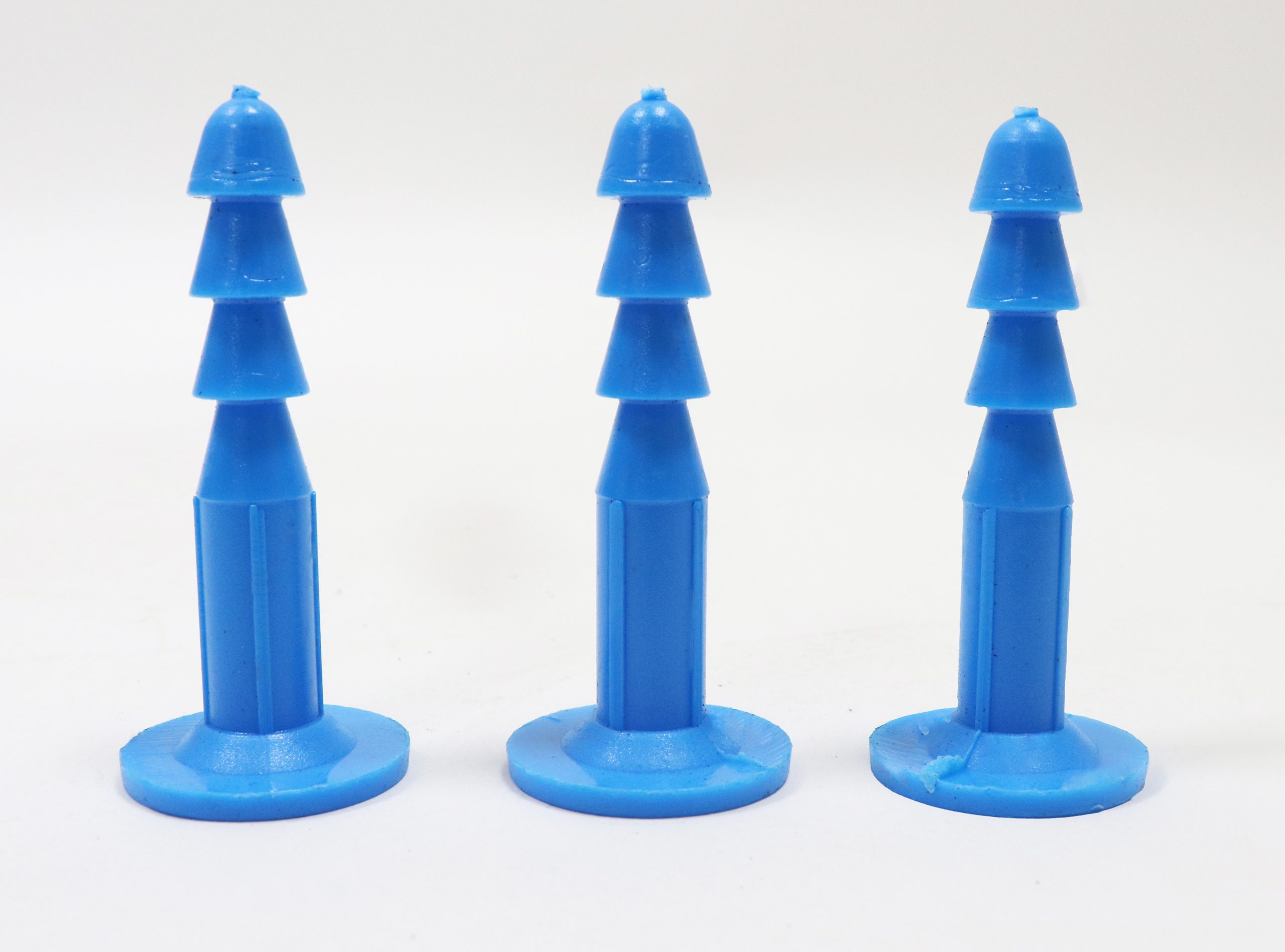

CDM NuSeal Plugs (A2) – For fixing the membrane to vaulted ceilings and sloping soffits

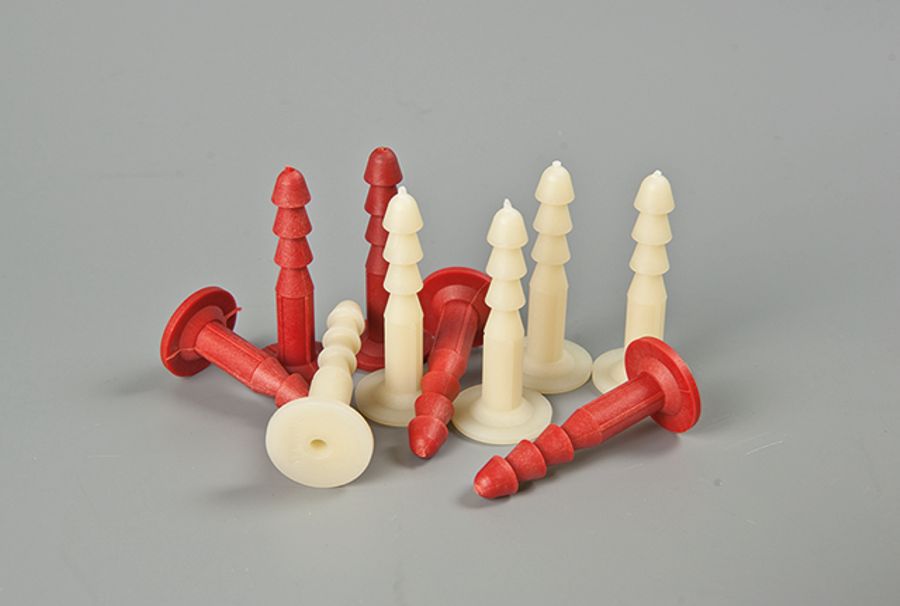

CDM rick Plugs (A3) – For securing Newton CDM Membranes to brickwork and concrete
CDM Helical MultiPlug Ties (WT 155 to 325) – For fixing into the head of the CDM MultiPlugs for the tying in of block or brick internal walls that are built in front of the Newton CDM System
Insulation Fixing Plugs (IF90) – For fixing CDM Fibran XPS-500C insulation spacer to the slab/raft where lightweight floor finishes are to be used

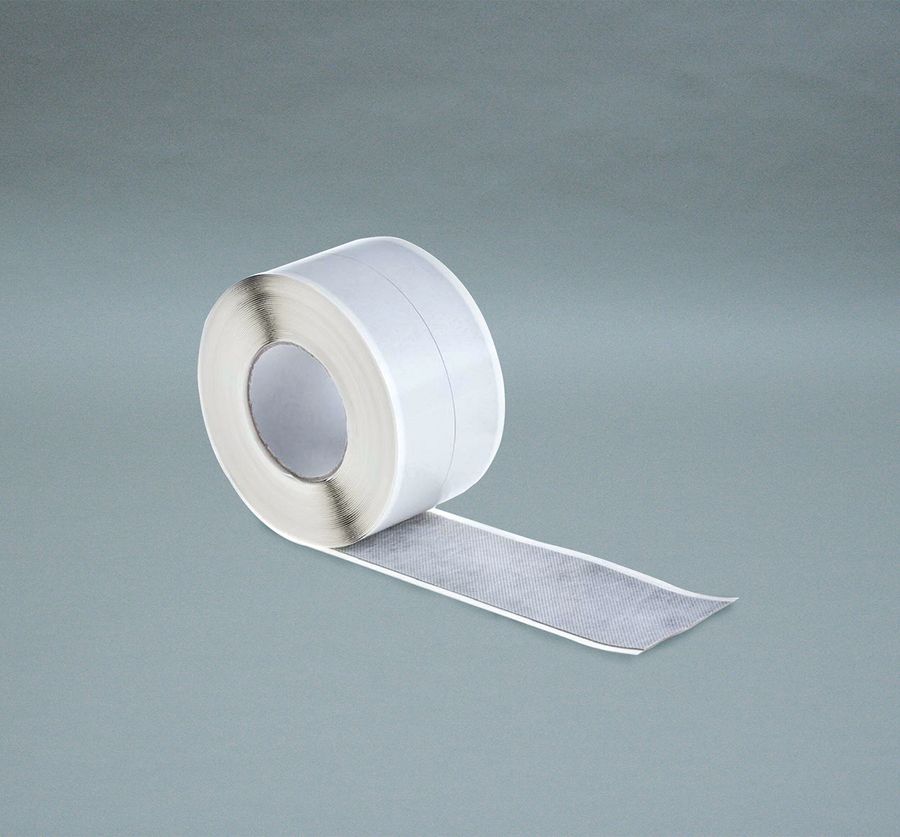

CDM Tape (A5, A5W) – Double-sided butyl sealing tape used to seal adjacent sheets of Newton membranes
CDM OverTape (A7, A8, A9) – Single-sided butyl tape used to seal the Newton PAC-500 Radon System and around protrusions at 3D detailing
CDM Rope (A6, A6w) – Butyl bead for sealing the base of the CDM NuSeal Plugs for fixing to vaults and soffits
Mesh Tape (A25) – A meshed variant of the CDM OverTape for Newton meshed membranes
CDM Condensation Strip (M14 & M14/500) – For collecting condensation into the CDM BaseDrain and not on internal finishes, available in 250mm x 20m & 500mm x 20m

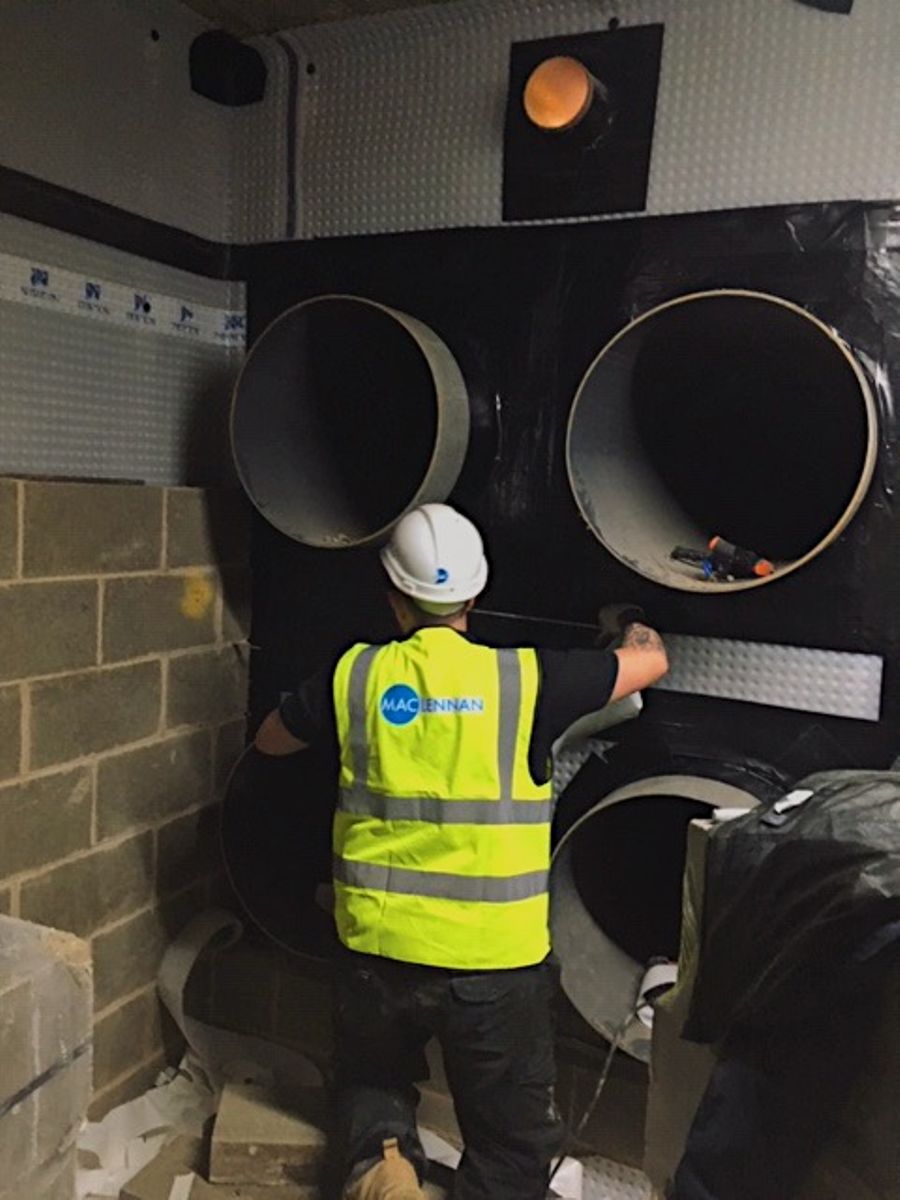

Pipe Collar (A35) – Preformed pipe seal for sealing a flat membrane to a protruding pipe
Newtonite Pipe Sleeve (BX3) – Preformed waterproof sleeve for 110mm pipe
Newtonite Joist Liner (BX4) – Waterproof lining for steels and joist ends, size: made to order
