CDM 508 Membrane

BBALogoCertNo-22_6357

  • Versatile Thickness Options: Available in 500g/m² and 700g/m² variants, CDM 508 offers tailored solutions to meet specific waterproofing requirements.
  • Long-Term Reliability: BBA certified and guaranteed against deterioration for 30 years, ensuring consistent performance and protection throughout the building’s life.
  • Robust Chemical Resistance: Inert and non-polluting, CDM 508 is highly resistant to water, alkalines, saline solutions, organic acids, minerals, and hydrocarbons, ensuring protection in diverse environments.
  • Comprehensive Waterproofing: Suitable for earth-retained walls, vaulted soffits, and floors, it integrates seamlessly with the Newton CDM System, providing complete waterproofing solutions for below-ground structures.

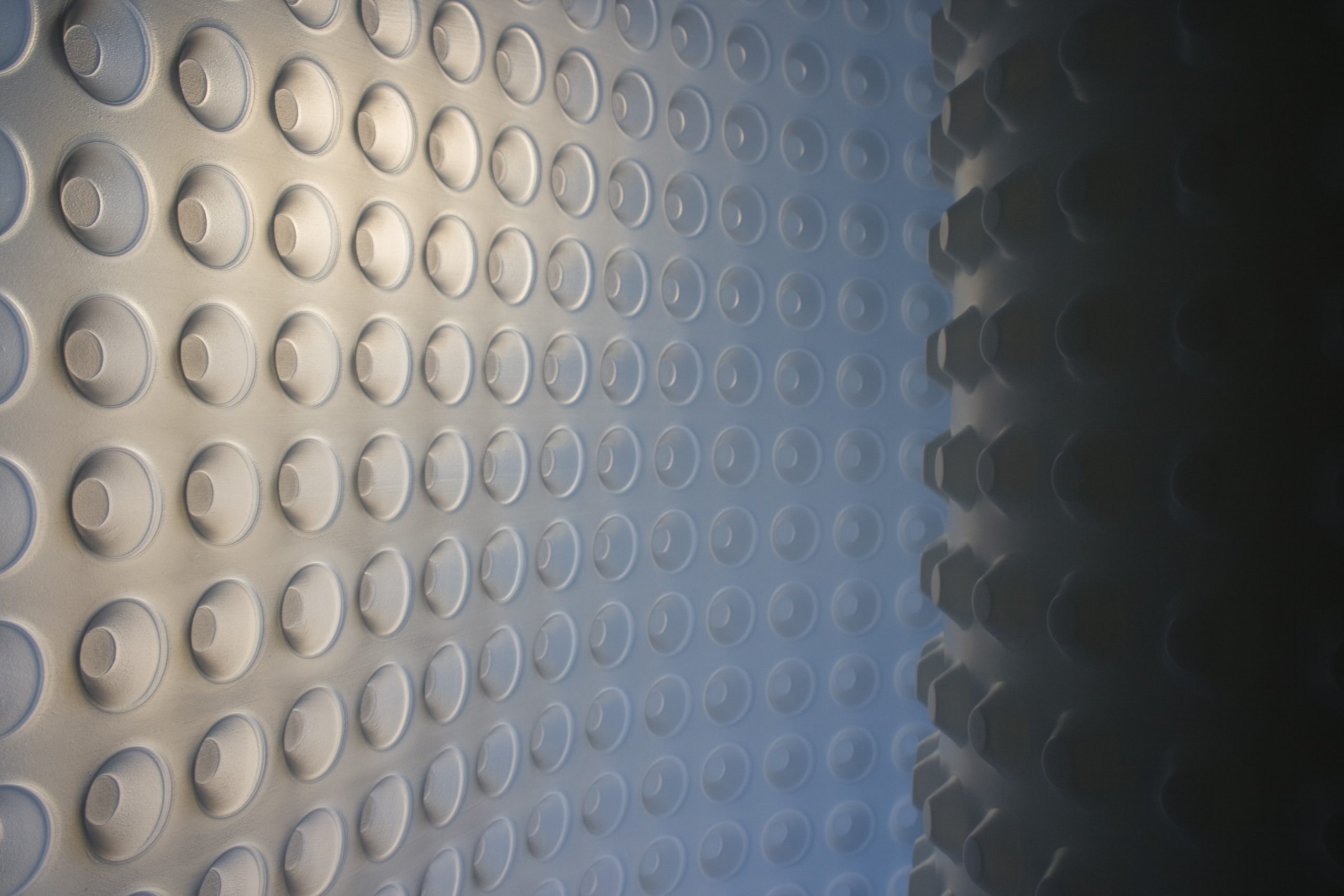

Newton CDM 508 is a high quality cavity drain waterproofing membrane, supplied in a number of sizes and in 500g/m2 and 700g/m2 variants for use within the Newton CDM System, our internally applied waterproofing system that also includes drainage and pumping systems.

CDM 508 is suitable for waterproofing earth retained walls and vaulted soffits and floors. It is guaranteed against deterioration for 30 years, with a life expectancy of the design life of the building (DIN 9001:2000), and supported by BBA Agrément Certificate 22/6357.

CDM 508 is inert and non-polluting to drinking water, highly resistant to water, alkalines, saline solutions and organic acids, and not affected by minerals and hydrocarbons. It is also rot-proof, and resistant to bacteria, fungi and small organisms.


  • Key Benefits
  • Typical Applications
  • BS 8102:2022
  • Technical Data
  • Available across the UK
  • Key Benefits

    Key Benefits

    • Does not require extensive and damaging preparation to the wall surface
    • Speed of installation
    • Capable of delivering a Grade 3 internal environment as per BS 8102:2022 where appropriate ventilation for the use of the space is also implemented

    Newton CDM 508 Membrane is available in the following variants:

    • CDM 508 700g/m² (Code M1-7-48): 2.4m x 20m – 48m²
    • CDM 508 700g/m² (Code M1-7-40): 2m x 20m – 40m²
    • CDM 508 500g/m² (Code M1-5-48): 2.4m x 20m – 48m²
    • CDM 508 500g/m² (Code M1-5-40): 2m x 20m – 40m²

    BES6001_Black

    Typical Applications

    Typical Applications

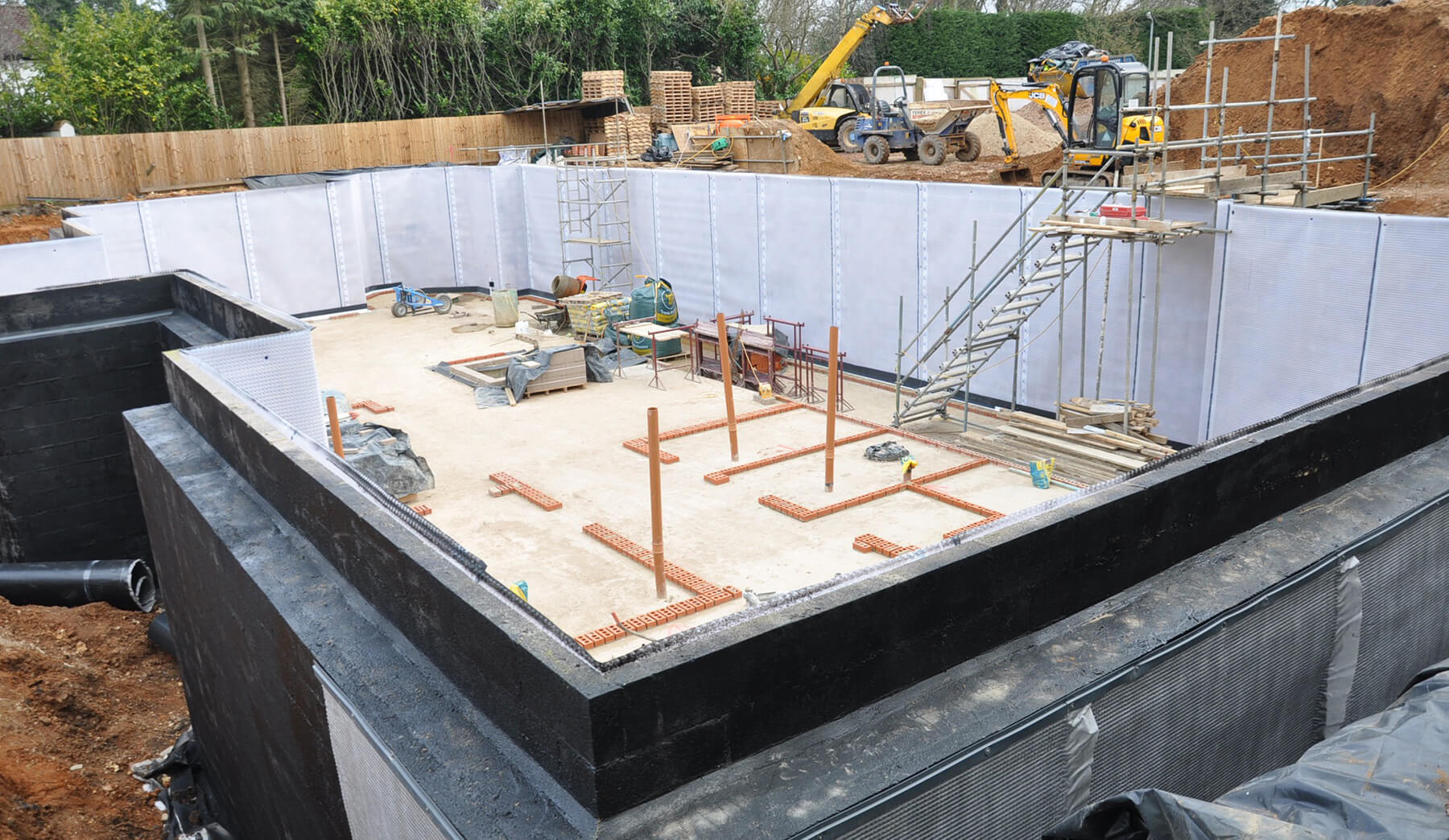

    As part of the Newton CDM System for below ground waterproofing applications.

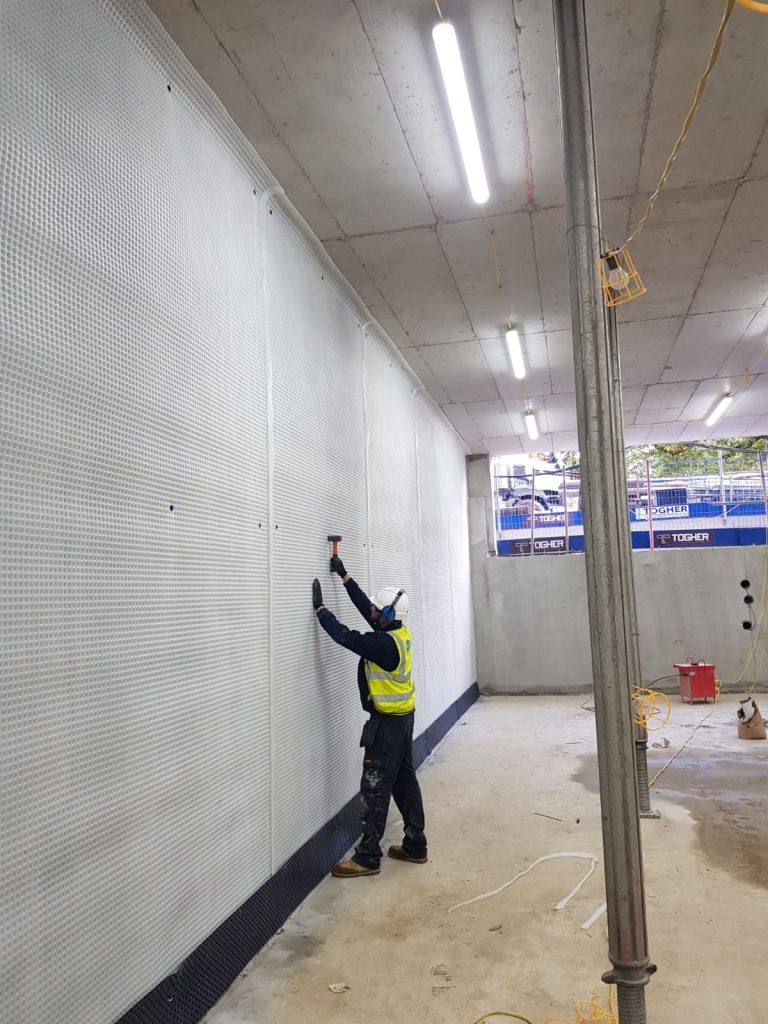

    • Walls
    • Floors (700g/m2 variants only)
    • Vaults
    • Tunnels

    SUITABLE SUBSTRATE – WALLS

    • Concrete
    • Brick
    • Concrete block
    • ICF – With special longer fixing plugs

    SUITABLE SUBSTRATE – FLOOR

    • Concrete raft or slab
    • Newton Fibran XPS 500-C closed cell extruded polystyrene insulation

    SUITABLE SUBSTRATE – SOFFITS

    • Concrete – To fall
    • Brick – Arched or vaulted

    BS 8102:2022

    BS 8102:2022

    The British Standard 8102:2022 Code of Practice for Protection of Below Ground Structures Against Water Ingress is the main design guide for structural waterproofing in the UK.

    The Newton CDM System is a maintainable system, so complies with BS 8102 requirements. The standard also specifies that: “a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”

    Therefore it is our recommendation that the Newton CDM System is installed by a Newton Specialist Contractor (NSBC).

    Technical Data

    Technical Data

    Features Result
    Material HDPE
    Colour White
    Density 500g/m² / 700g/m²
    Width 2.0m / 2.4m
    Length 20m
    Area 40m² / 48m²
    Height 8.0mm
    Membrane thickness 0.45mm
    Stud Height 7.0mm
    Working temperature -50ºC to +80ºC
    Softening temperature 126ºC
    Packaged weight 20 / 24 / 28 / 33.6 kg
    Service temperature -40ºC to +80ºC









    Installed Performance Result
    Water tightness at 60 kPa; 24h Pass
    Tensile strength MD 416N
    Tensile strength CD 488N
    Resistance to static loading >20kg
    Compressive strength 180kN
    Fire resistance E*
    Type of application Type V
    Life expectancy Lifetime of Structure

    The above data, even if carried out according to regulated tests are indicative and they may change when specific site conditions vary.
    * Newton Waterproofing Systems can provide fire-resistant membranes that are tested and classified to a fire rating of B-s2.d0. Get in touch directly for more information.
