CDM 508 Mesh Membrane

Newton CDM 508 Mesh is a high quality, 8mm meshed cavity drain waterproofing membrane for use within the Newton CDM System, our internally applied waterproofing system that also includes drainage and pumping systems. The strong polyethylene mesh is thermally welded to the face of the membrane during manufacturing to provide a key for plasters and renders.

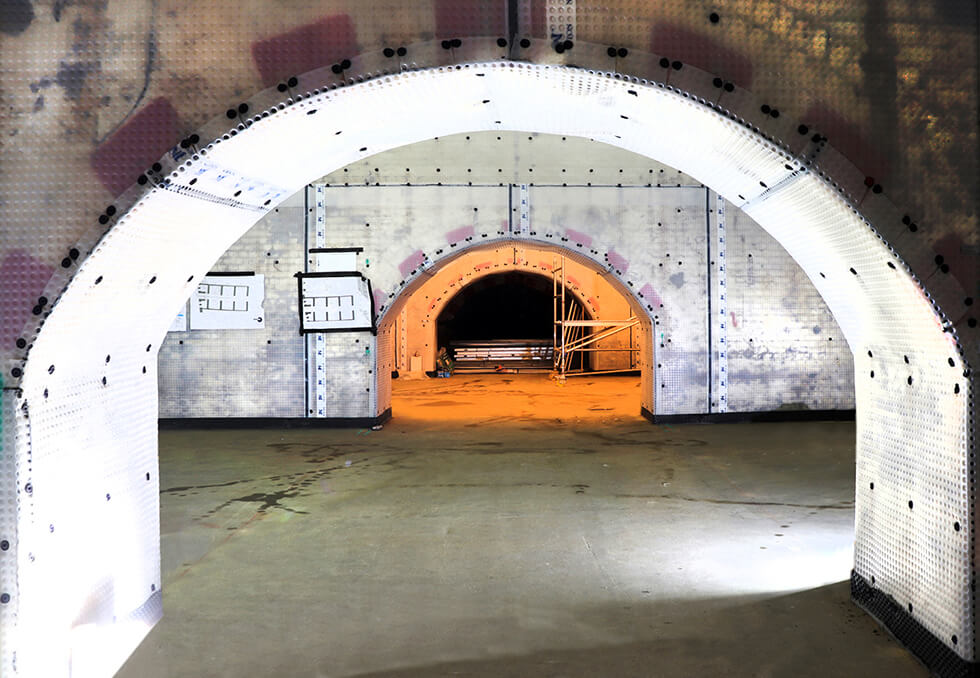

CDM 508 Mesh is suitable for the waterproofing of earth retained walls and vaulted soffits and is guaranteed against deterioration for 30 years, with a life expectancy of the design life of the building (DIN 9001:2000), and supported by BBA Agrément Certificate 22/6357.

CDM 508 Mesh is inert and non-polluting to drinking water, highly resistant to water, alkalines, saline solutions and organic acids, and not affected by minerals and hydrocarbons. It is also rot-proof, and resistant to bacteria, fungi and small organisms.

Key Benefits

Typical Applications

British Standard 8102:2022

Technical Data

Available across the UK

Key Benefits

Does not require extensive and damaging preparation to the wall surface
Speed of installation
Capable of delivering an environment to all levels within a Grade 3 environment to BS 8102:2022
Meshed surface for application of plasters/renders

BES6001_Black

Typical Applications

As part of the Newton CDM System for below ground waterproofing applications:

Walls
Vaults
Tunnels

SUITABLE SUBSTRATE – WALLS

Concrete
Brick
Concrete block
ICF – With special longer fixing plugs

SUITABLE SUBSTRATE – SOFFITS

Concrete – To fall
Brick – Arched or vaulted

British Standard 8102:2022

The British Standard 8102:2022 Code of Practice for Protection of Below Ground Structures Against Water Ingress is the main design guide for structural waterproofing in the UK.

The Newton CDM System is a maintainable system, so complies with BS 8102 requirements. The standard also specifies that: “a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”

Therefore it is our recommendation that the Newton CDM System is installed by a Newton Specialist Contractor (NSBC).

Technical Data

Features	Result
Material	HDPE
Colour	White
Density	505g/m²
Width	2.0m
Length	20m
Area	40m²
Membrane thickness	0.6mm
Stud Height	7.0mm
Working temperature	-50ºC to +80ºC
Softening temperature	126ºC
Packaged weight	20.2kg

Installed Performance	Result
Water tightness at 60 kPa; 24h	Pass
Tensile strength MD	416N
Tensile strength CD	488N
Resistance to static loading	>20kg
Compressive strength	180kN
Fire resistance	F*
Type of application	Type V
Life expectancy	Lifetime of Structure

The above data, even if carried out according to regulated tests are indicative and they may change when specific site conditions vary.
* Newton Waterproofing Systems can provide fire-resistant membranes that are tested and classified to a fire rating of B-s2.d0. Get in touch directly for more information.

Available across the UK
