An impressive basement extension, housing a swimming pool and sauna, required a robust waterproofing solution at this large country home.

The Project

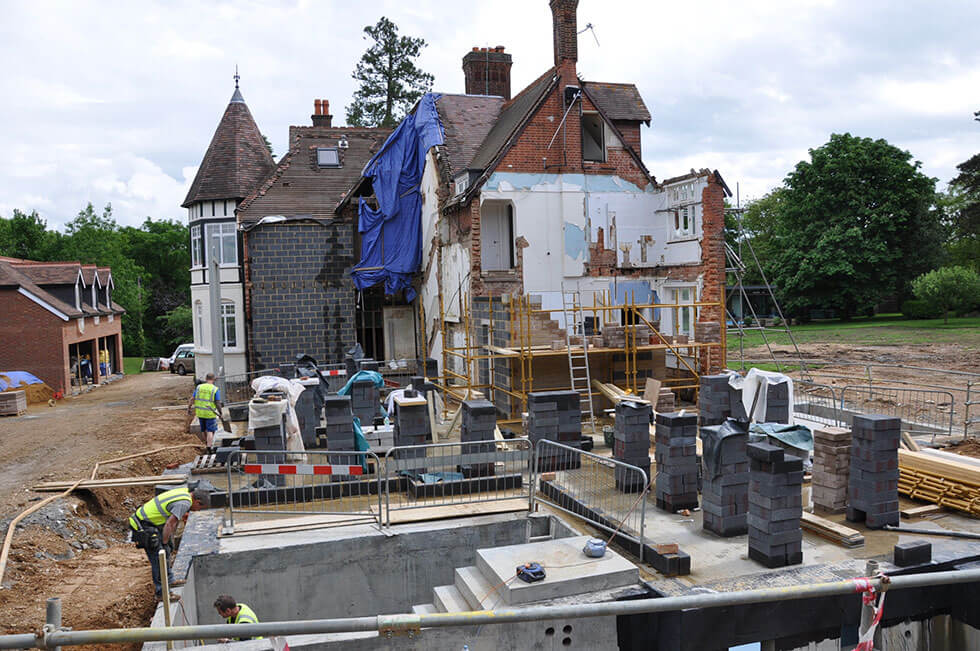

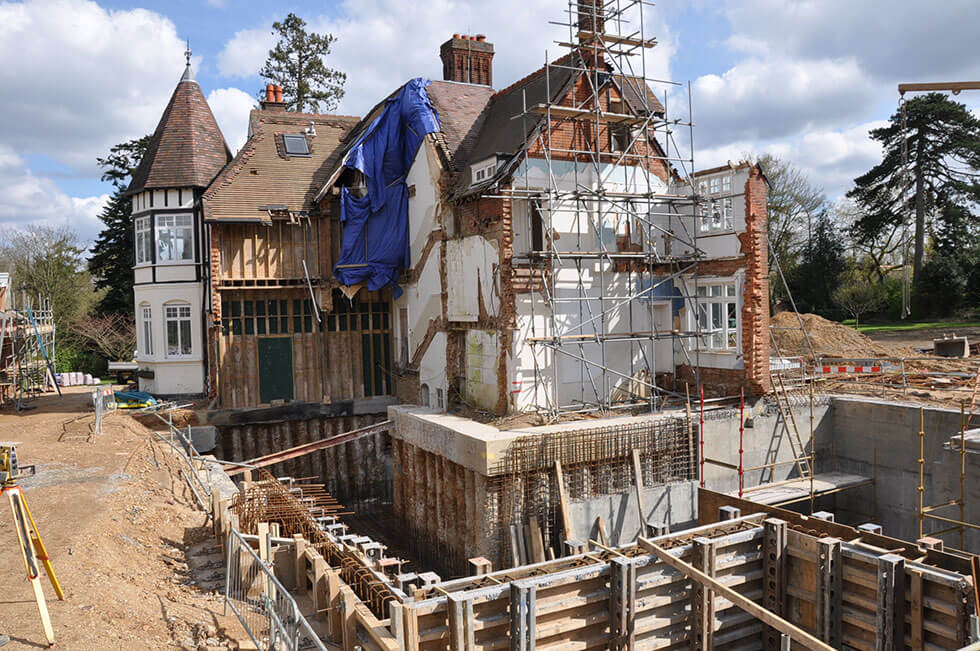

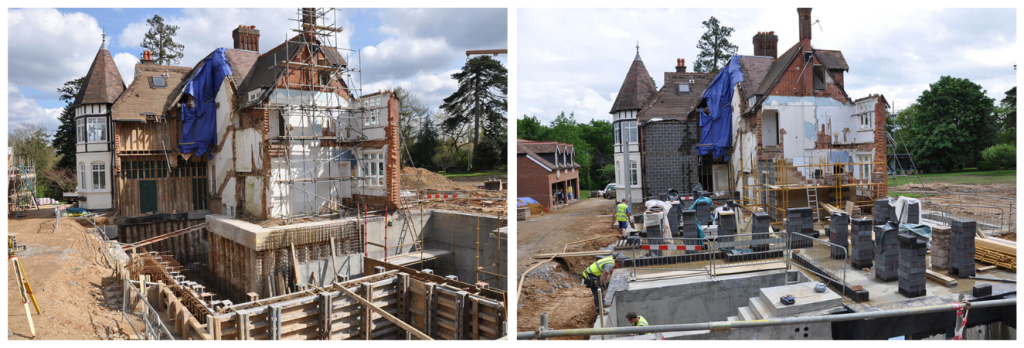

Newton Specialist Contractor Stonehouse were brought onto this large residential project to waterproof an underground extension including a swimming pool and sauna. Set in a small village in Berkshire, the impressive countryside home was designed by architects Spratley and Partners.

For the new below-ground structure, Stonehouse were required to install a failsafe and maintainable waterproofing system that would completely protect the luxurious basement from unwanted water ingress.

The Solution

Ensuring that the project was fully compliant with BS 8102:2009, Stonehouse recommended a combined waterproofing solution using a Type B reinforced and water-resistant concrete structure designed to BS EN 1992, combined with a full Type C internal cavity drain membrane system.

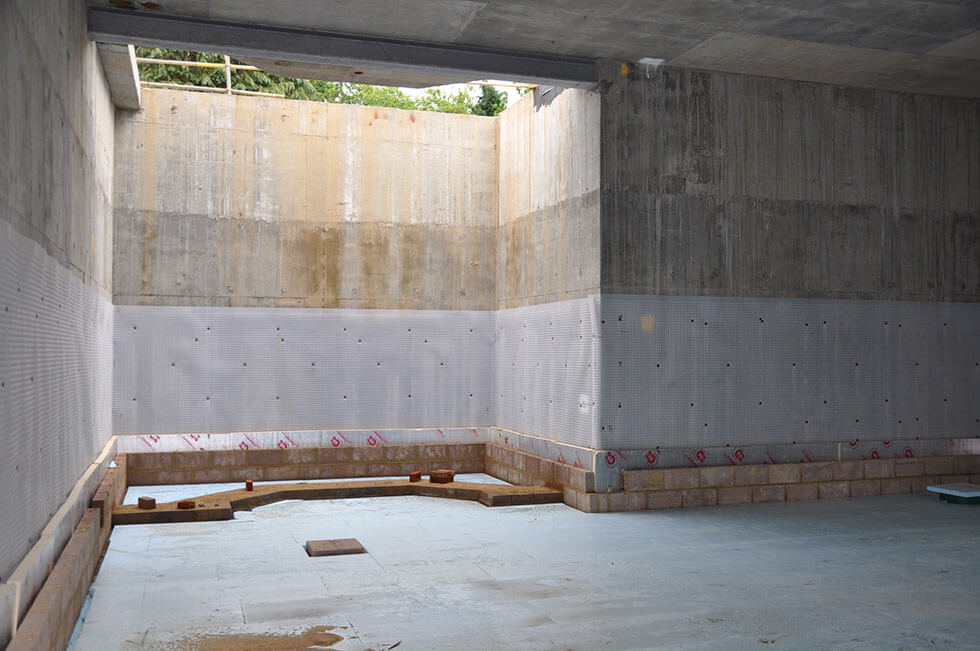

As the most reliable and completely maintainable Type C waterproofing solution, the Newton CDM System was the ideal choice for this structure. Firstly, Newton 508 membrane was securely fixed to the internal walls of the basement using Newton's specialist MultiPlug fixings.

Any water that is captured by the membrane is then drained away with Newton Basedrain channels, and pumped out of the property using a Titan-Pro sump chamber fitted with two NP400 pumps and supported by a failsafe battery back-up system.

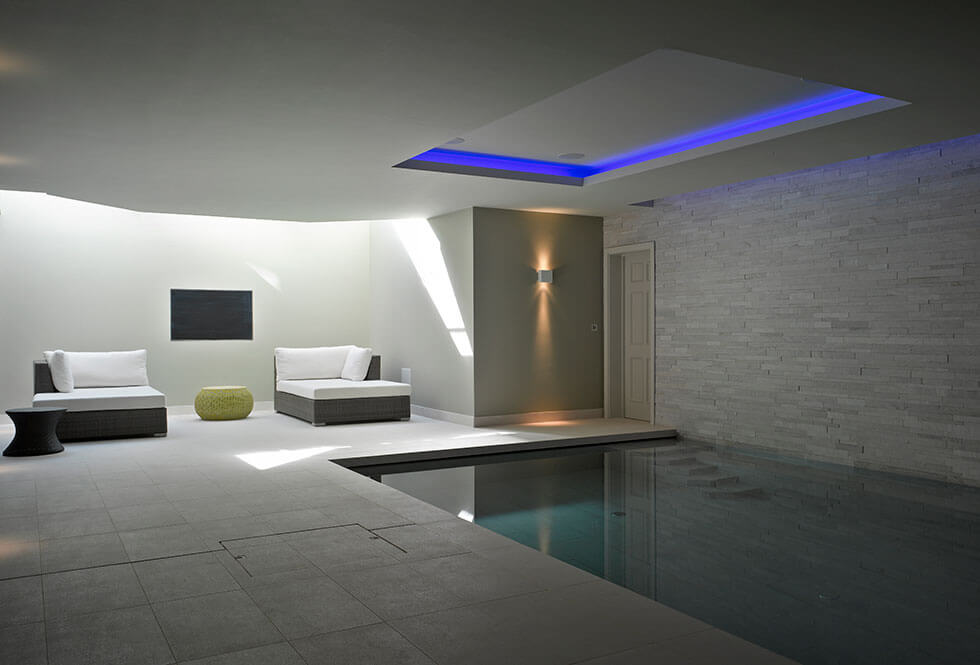

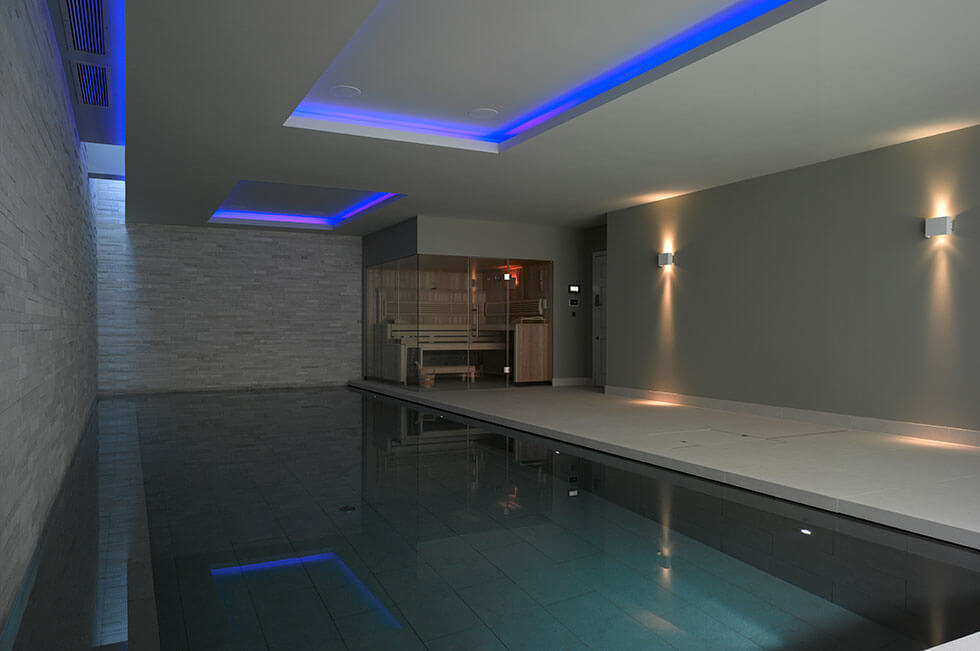

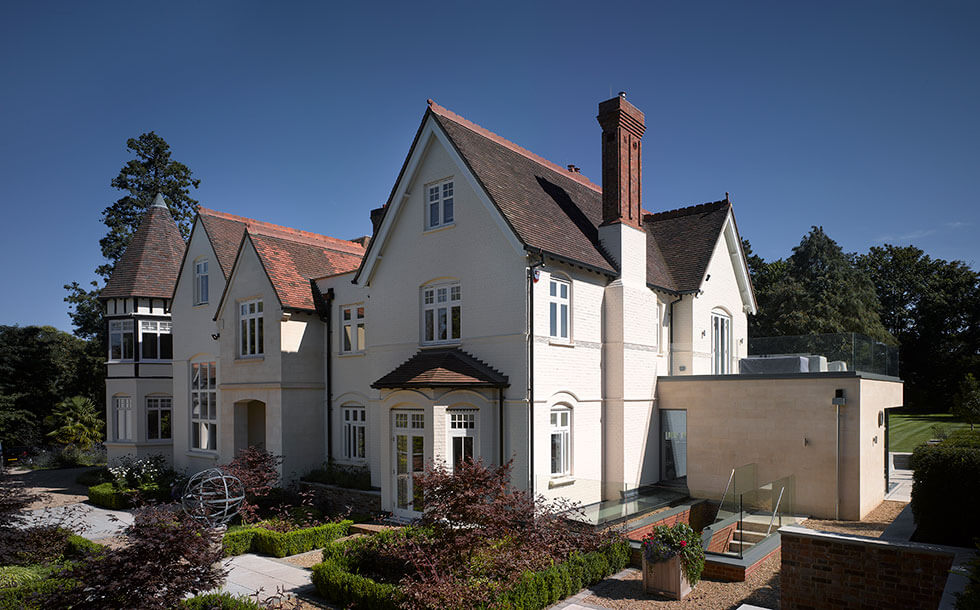

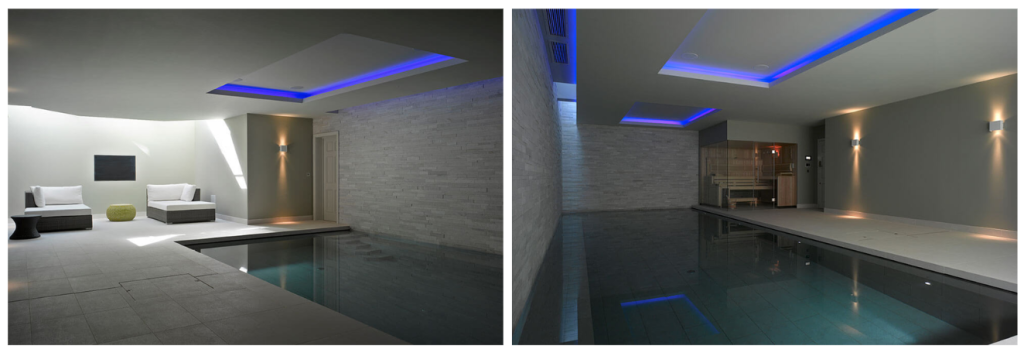

The Result

As an extremely experienced waterproofing contractor, Stonehouse were able to confidently recommend, design and install a comprehensive and truly failsafe waterproofing system that will protect the property from unwanted water ingress for many years to come. Stonehouse also provided complete peace of mind by offering a 10 year guarantee on the installation.

quotation marks

Stonehouse were involved from the initial design sketches through to completion and were able to ensure this complicated basement was protected by a simple yet effective Newton waterproofing system. Potential problems and difficult interfaces were reconsidered and redesigned early on in the build, ensuring everything went to plan and a beautiful dry basement was created. Graham Stone - Managing Director, Stonehouse.
