520 eco Floor

BBALogoCertNo 3010

  • High Drainage Capacity: With a 20mm deep stud profile, 520 eco Floor provides exceptional drainage capacity, ideal for areas at risk of severe water penetration.
  • Sustainable and Durable: Made from 100% recycled materials, this eco-friendly membrane offers a 30-year guarantee and a life expectancy that matches the design life of the building.
  • Chemical and Biological Resistance: Inert and non-polluting, 520 eco Floor is highly resistant to water, alkalies, saline solutions, organic acids, minerals, hydrocarbons, root penetration, bacteria, fungi, and other small organisms.
  • Certified Performance: Supported by BBA Certification Number 94/3010, ensuring reliable and long-lasting waterproofing performance as part of the Newton CDM System, including drainage and pumping systems.

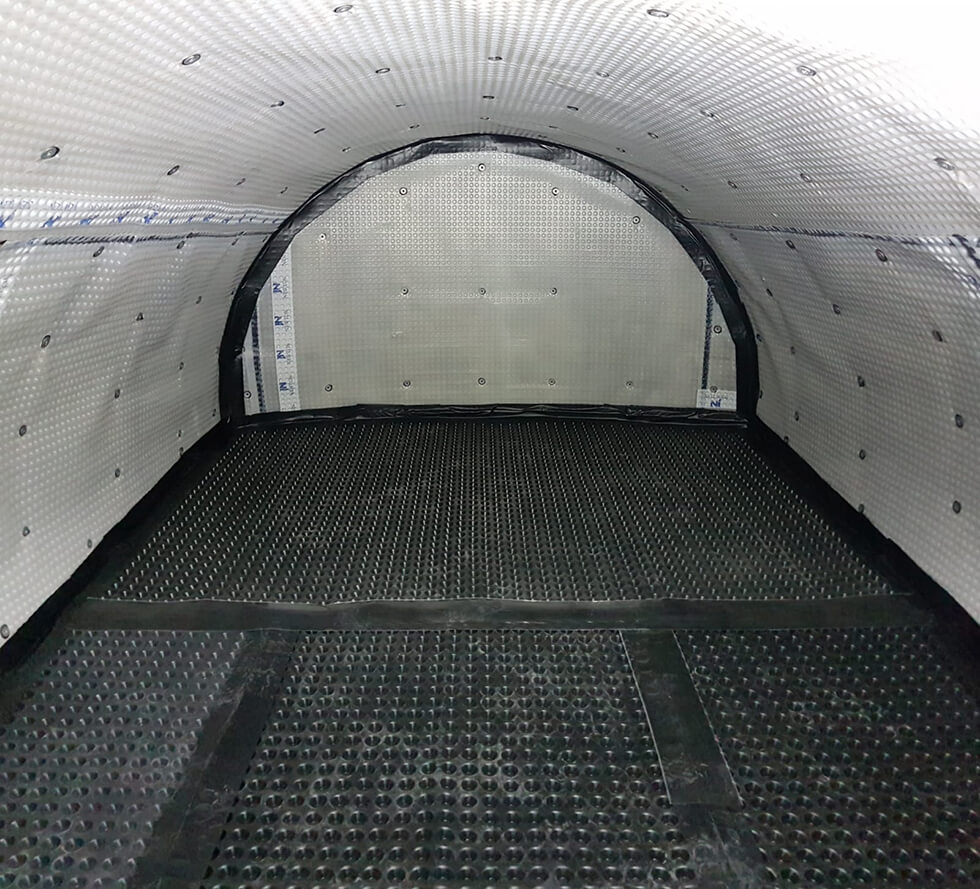

Newton 520 eco is a high quality and 100% recycled, 20mm cavity drain floor membrane, for use within the Newton CDM System, our internally applied waterproofing system that also includes drainage and pumping systems.

With its 20 mm deep stud profile, Newton 520 eco is used within the Newton CDM System as a high drainage capacity floor membrane, and is generally specified where it is anticipated that there may be a risk of severe water penetration.

Newton 520 eco is guaranteed against deterioration for 30 years, with a life expectancy of at least the design life of the building (DIN 9001:2000) and is supported by BBA Certification Number 94/3010.

Newton 520 eco is inert and, therefore, non-polluting to drinking water, highly resistant to water, alkalies, saline solutions and organic acids, and not affected by minerals and hydrocarbons. It is also impervious to root penetration, is rot-proof, and resistant to bacteria, fungi and other small organisms.


  • Key Benefits
  • Typical Applications
  • British Standard 8102:2022
  • Technical Data
  • Available across the UK
  • Key Benefits

    Key Benefits

    • Third-party tested for long-term compressive load to ISO 25619-1 (2% compression over 50-years)
    • Speed of installation
    • Made from 100% recycled HDPE
    • Provides vapour control and, when used with humidity control systems and is capable of delivering an environment to all levels within a Grade 3 environment to BS 8102:2022
    • Resistant to rot, chemically aggressive groundwater, acids and alkalines, efflorescing salts and hydrocarbon contamination
    • Product waste is recycled when returned to Newton Waterproofing by Newton Specialist ContractorsBES6001_Black

    Typical Applications

    Typical Applications

    Suitable Substrate

    British Standard 8102:2022

    British Standard 8102:2022

    The British Standard 8102:2022 Code of Practice for Protection of Below Ground Structures Against Water Ingress is the main design guide for structural waterproofing in the UK.

    The Newton CDM System is a maintainable system, so complies with BS 8102 requirements. The standard also specifies that: “a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”

    Therefore it is our recommendation that the Newton CDM System is installed by a Newton Specialist Contractor (NSBC).

    Technical Data

    Technical Data

    Features Result
    Material HDPE
    Colour Black
    Density 1000 g/m²
    Width 2.07 m
    Length 20 m
    Area 40 m²
    Height 20 mm
    Membrane thickness 1.0 mm
    Stud depth 19.0 mm
    Vicat softening temperature 126ºC
    Packaged weight 37.62 kg
    Service temperature -40 to 80ºC
    Installed Performance Result
    Compressive strength – Temporary loading 240 kPa
    Compressive strength – Permanent loading 4 kPa
    Compressive strength – Permanent with studs filled with C16 screed 800 kPa
    Thermal conductivity 0.461 W/mK
    Colour Black
    Water vapour diffusion resistance – Sd value > 604 m
    Water vapour diffusion resistance – μ value > 1208000 μ
    Water vapour diffusion resistance > 3020 MNs/g
    Resistance to fire Euroclass E*
    Chemical resistance – Excellent  100%
    Oxidation resistance – Excellent 100%

    The above data, even if carried out according to regulated tests are indicative and they may change when specific site conditions vary.
    * Newton Waterproofing Systems can provide fire-resistant membranes that are tested and classified to a fire rating of B-s2.d0. Get in touch directly for more information.
