CDM Fibran XPS-500C

  • Multi-Functional Insulation: CDM Fibran XPS-500C provides thermal insulation, drainage, and protection within one product, making it ideal for various waterproofing applications.
  • Certified Environmental Impact: With an Environmental Product Declaration (EPD) certified to ISO 14025, the product’s lifecycle environmental impact is transparently reported, showcasing its sustainability.
  • High Compression Strength: Rated at 500 kPa, these boards offer robust support and stability, ensuring reliable performance in demanding conditions.
  • Integration with Newton CDM System: Specifically designed to work within the Newton CDM System, the slotted insulation boards enhance the effectiveness of BaseDrain and FloorDrain channels, ensuring optimal drainage and support.
  • Versatile Protection: Suitable for use as protection for liquid-applied waterproofing membranes on new earth-retained structures or retained walls, providing comprehensive insulation and drainage solutions.

Newton CDM Fibran XPS-500C is a 50mm deep, closed-cell thermal insulation board made from rigid extruded polystyrene foam (XPS).

The product is manufactured in accordance with EN 13164 – “Thermal insulation products for buildings – Factory made products of extruded polystyrene (XPS)-specification.”

CDM Fibran XPS-500C has been certified to ISO 14025 standard with an Environmental Product Declaration (EPD). This reports the full value chain from material extraction to the manufacturing of the product, usage and end of life, declaring the products environmental impact from a lifecycle perspective.

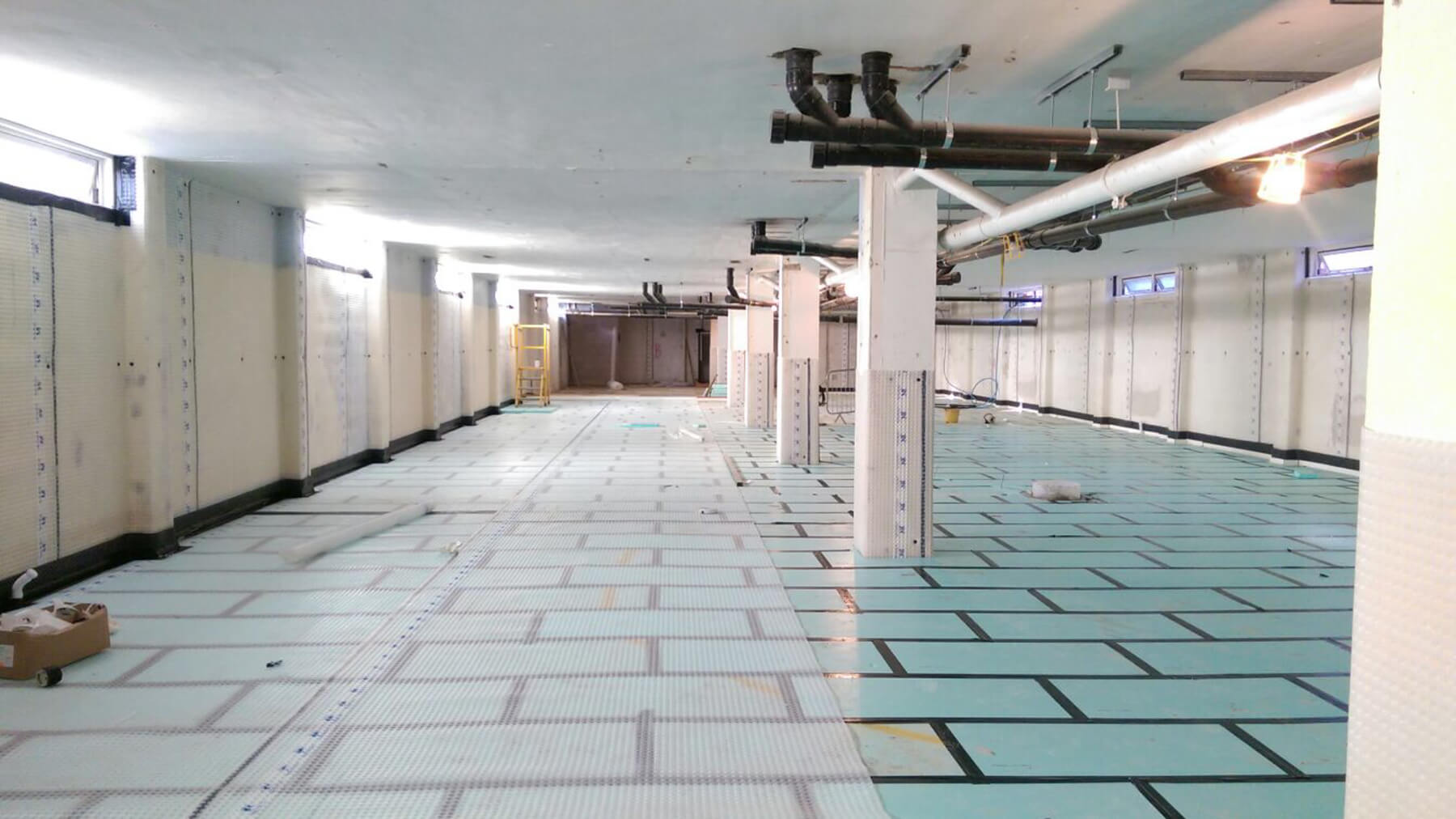

Produced exclusively for Newton Waterproofing Ltd, CDM Fibran XPS-500C insulation boards are used to form a 50mm spacer adjacent to the CDM BaseDrain and CDM FloorDrain drainage channels within the Newton CDM System cavity drain waterproofing system. The insulation boards are rated at 500 kPa and feature specifically designed slots to the underside of the boards, that in combination with the perimeter and spine drainage channels of the Newton CDM System form a fully drained supporting spacer below the floor drainage membrane.

The insulation boards can also be used as a protection for Newton liquid applied waterproofing membranes applied externally to new earth-retained structures or retained walls, uniquely offering protection, insulation and drainage within one product.

  • Key Benefits
  • Typical Applications
  • Suitable Substrate
  • Technical Data
  • Available across the UK
  • Key Benefits

    Key Benefits

    • Excellent thermal insulation characteristics with a very low coefficient of thermal conductivity
    • Closed cell structure with no connecting capillaries resulting in extremely high resistance to water absorption and diffusion of water vapour
    • Capable of permanent submersion in water
    • Fully inert when subjected to climatic variations
    • High mechanical and compressive strength and high dimensional stability
    • Contains no CFC or HCFC’s
    • Life expectancy is equivalent to the building in which it is installed (estimated 50 years)
    • 100% recyclable
    • Easy to transport, cut and apply
    • Completely rot proof and does not develop any mould or other efflorescence
    • No nutritional value for rodents, insects, etc
    • Good resistance to acids, alkalines, aggressive ground containments and inorganic gases

    Typical Applications

    Typical Applications

    Suitable Substrate

    Suitable Substrate

    • Compacted, clean, and level surfaces
    • Basement concrete floor slabs and rafts
    • Earth retained walls of concrete, mortar or ICF
    • Compacted blinding

    Technical Data

    Technical Data

    Properties Result
    Compressive strength at 10% deformation 500 kPa
    Compressive creep over 50 years at < 2%
    deformation
    165 kPa
    Service temperature -50°C to +75°C
    Thermal conductivity* 0.035 W/mk
    Thermal conductivity when fully immersed** 0.040 W/mk
    Thermal resistance (after 25 years)*** 1.29 m2K/W
    Specific heat capacity 1.5 kJ/(kg.K)
    Long term water absorption by immersion**** 0.7%
    Water absorption by diffusion 3%
    Reaction to fire (Euroclass) Class E
    Global Warming Potential (GWP) < 5 kg CO2 (Eq)

    *After 25 years
    **When permanently and totally immersed in water for 25 years
    ***Calculated using nominal thickness of 45mm due to grooved surfaces
    ****Smooth surface
