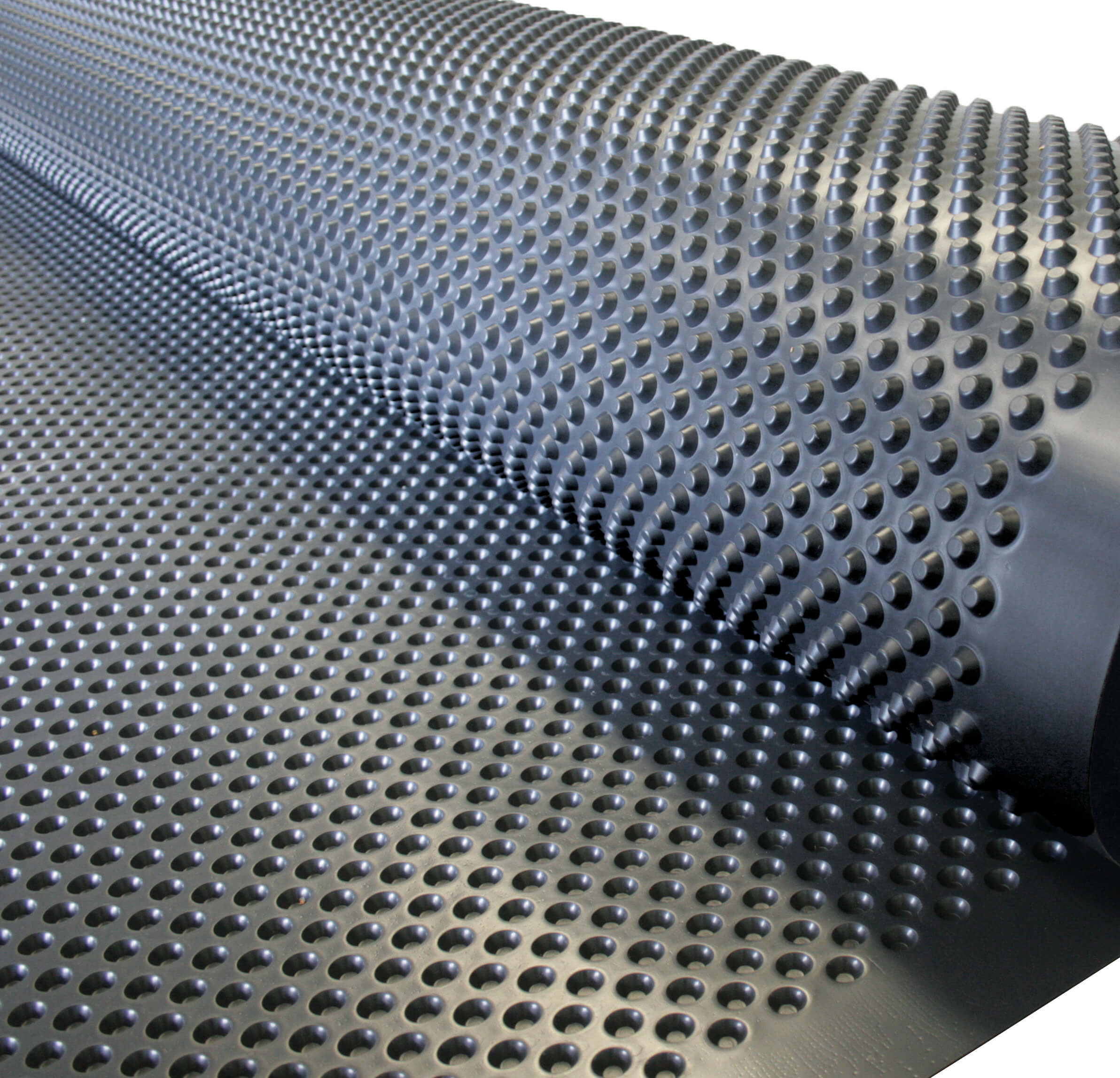

BBALogoCertNo 3010Newton 508 eco Floor is a high quality 8mm recycled cavity drain floor membrane, for use within the Newton CDM System, our internally applied waterproofing system that also includes drainage and pumping systems.

Designed with more studs per square metre to deliver higher compressive resistance than standard cavity drain membranes whilst putting less load on the substrate, Newton 508 eco Floor is best suited for floor installations as part of a comprehensive CDM waterproofing system.

Newton 508 eco Floor is guaranteed against deterioration for 30 years, with a life expectancy of the design life of the building (DIN 9001:2000), and supported by BBA Certificate Number 94/3010.

508 eco Floor is inert and non-polluting to drinking water, resistant to water, alkalines, saline solutions and organic acids, and not affected by minerals and hydrocarbons. It is also rot-proof, and resistant to bacteria, fungi and small organisms.

Newton 508 eco Floor is also independently tested as an effective barrier to radon ground gases, and is used within our patented combined ground gas and waterproofing system, Newton PAC-500.

  • Key Benefits
  • Typical Applications
  • British Standard 8102:2022
  • Technical Data
  • Available across the UK
  • Key Benefits

    Key Benefits

    • Third-party tested for long-term compressive load to ISO 25619-1 (2% compression over 50-years)
    • Does not require extensive and damaging preparation to the wall surface
    • Speed of installation
    • Provides vapour control used with humidity control systems, capable of delivering an environment to all levels within a Grade 3 environment to BS 8102:2022
    • Independently certified as a barrier to hydrocarbon gases and radon
    • Resistant to rot, chemically aggressive groundwater, acids and alkalines, efflorescing salts and hydrocarbon contamination

    Typical Applications

    Typical Applications

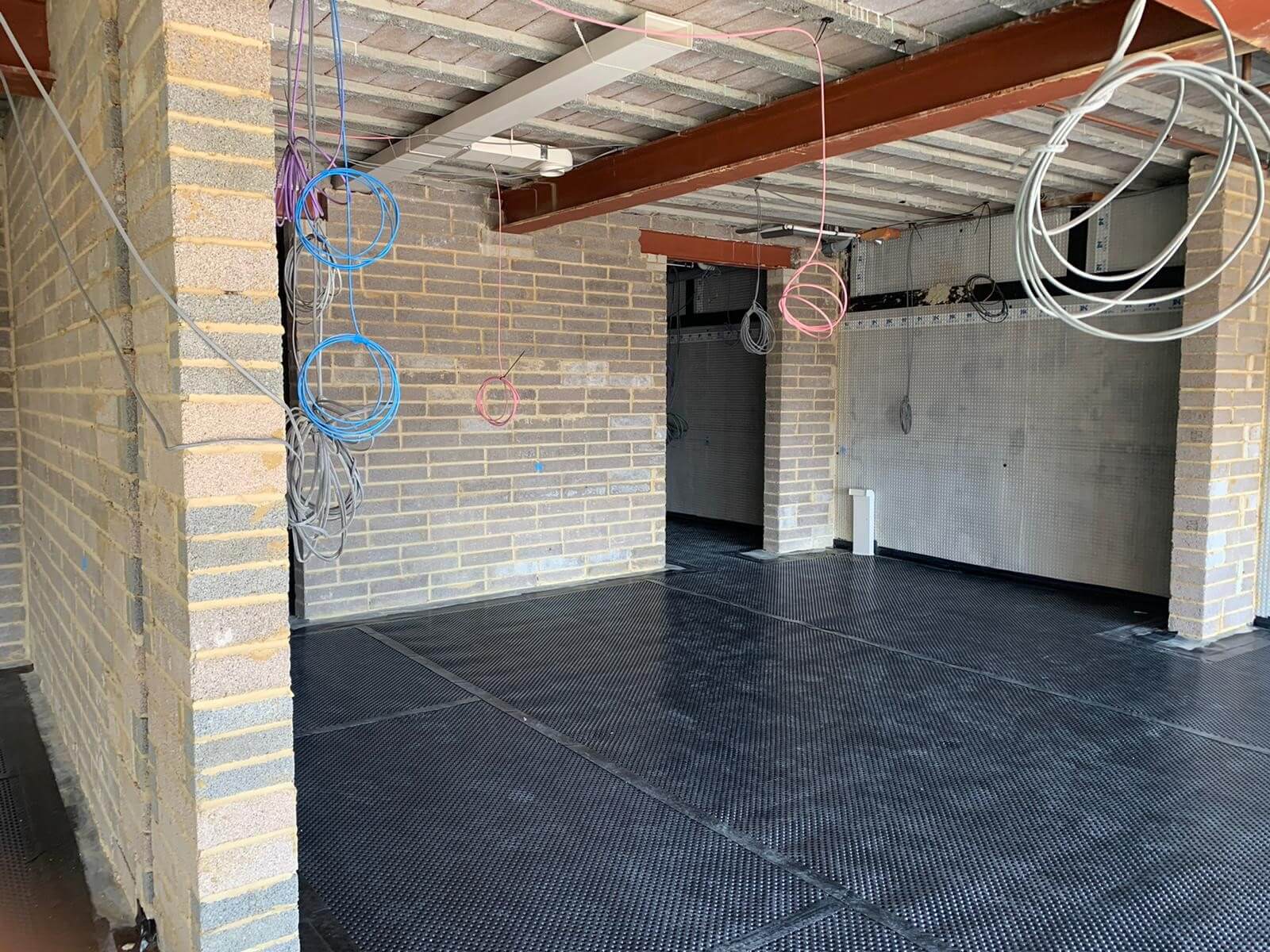

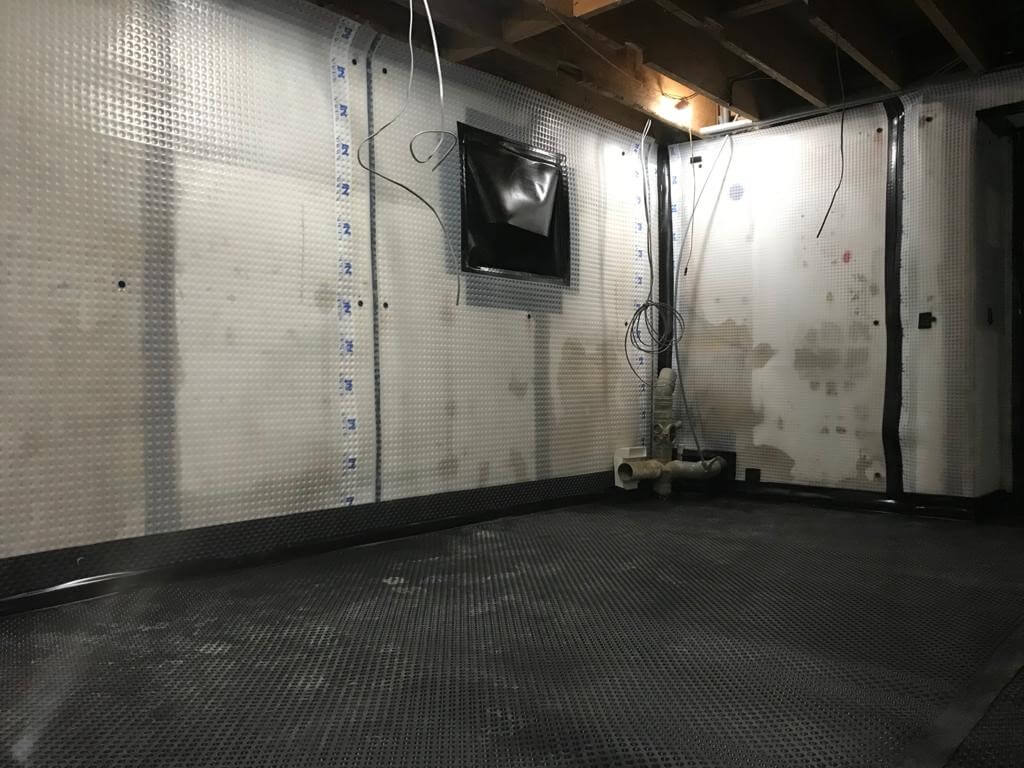

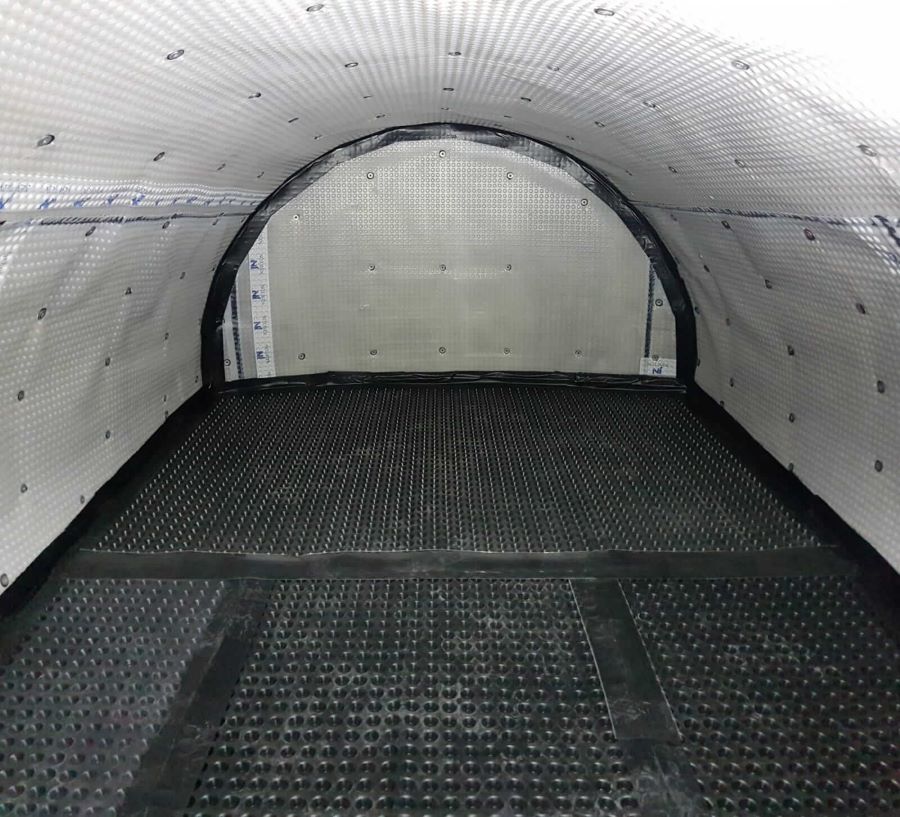

    Floor membrane as part of the Newton CDM Type C waterproofing system.

    Suitable Substrate – Floor

    British Standard 8102:2022

    British Standard 8102:2022

    The British Standard 8102:2022 Code of Practice for Protection of Below Ground Structures Against Water Ingress is the main design guide for structural waterproofing in the UK.

    The Newton CDM System is a maintainable system, so complies with BS 8102 requirements. The standard also specifies that: “a waterproofing specialist should be included as part of the design team so that an integrated waterproofing is created”

    Therefore it is our recommendation that the Newton CDM System is installed by a Newton Specialist Contractor (NSBC).

    Technical Data

    Technical Data

    Features Result
    Material HDPE
    Colour Black
    Density 800 g/m2
    Width 2.5m
    Length 20m
    Area 50m2
    Height 8.0mm
    Membrane thickness 0.8mm
    Stud Depth 7.2mm
    Vicat softening temperature 126ºC
    Packaged weight 40kg
    Service Temperature -40 to +80ºC





    Installed Performance Result
    Compressive strength – Temporary 520 kPa
    Compressive strength – Permanent 21 kPa
    Compressive strength – Permanent – with studs filled with C16 screed 800 kPa
    Thermal Conductivity 0.461 W/mK
    Water vapour resistance – Sd value >604 m
    Water vapour resistance – μ value >1208000 μ
    Water vapour diffusion resistance >3020 MNs/g
    Resistance to fire – Euroclass Not tested – F*
    Chemical resistance – Excellent 100%
    Oxidation resistance – Excellent 100%
    Radon gas resistance – Membrane 4.4 x 10-12 m²/s
    Radon gas resistance – Joints 1.6 x 10-12 m²/s



    The data, even if carried out according to regulated tests are indicative and they may change when specific site conditions vary. *Newton Waterproofing Systems can provide fire-resistant membranes that are tested and classified to a fire rating of B-s2.d0. Get in touch directly for more information.
