Autocad & PDF's

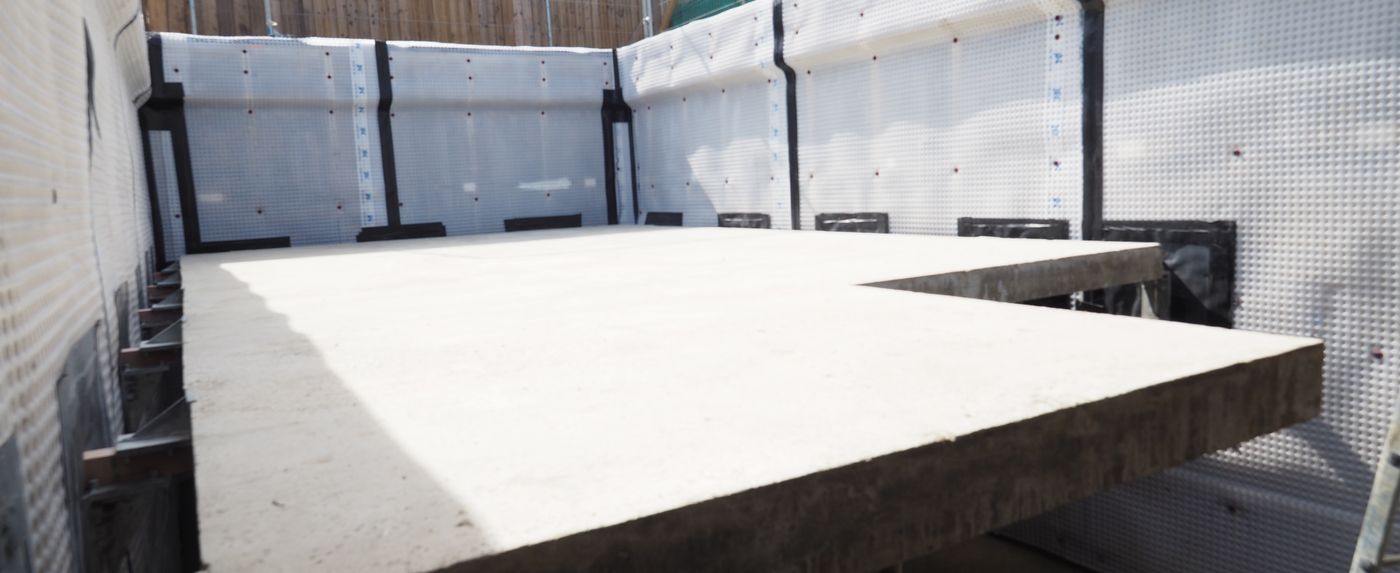

A small selection of our detailed technical drawings for Damp Proofing – Sections. If you are looking for a technical drawing that isn’t here, please contact our Technical Team who will be able to assist you further.

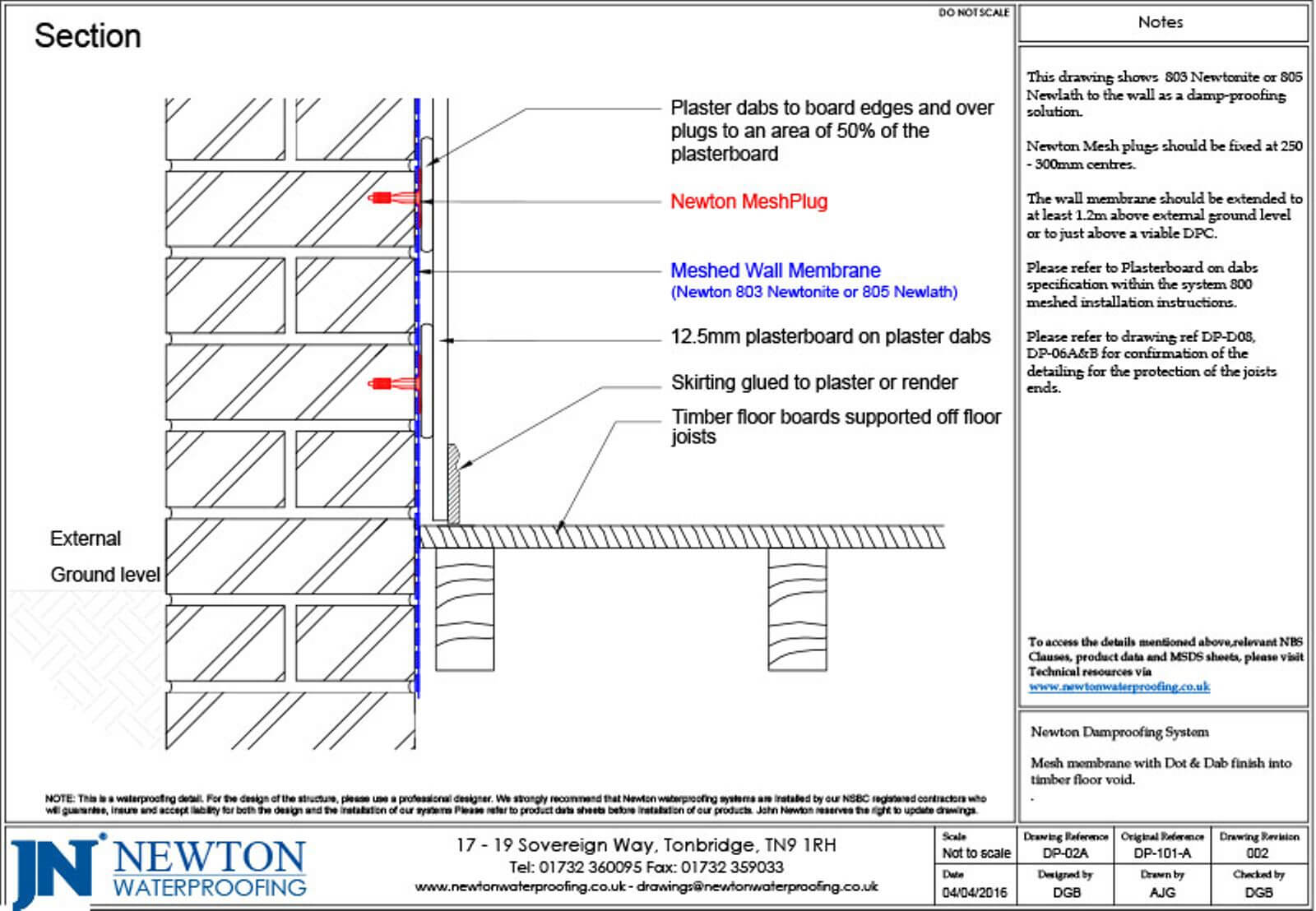

DP-02A

Mesh membrane with Dot & Dab finish into timber floor void terminating into floor void

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

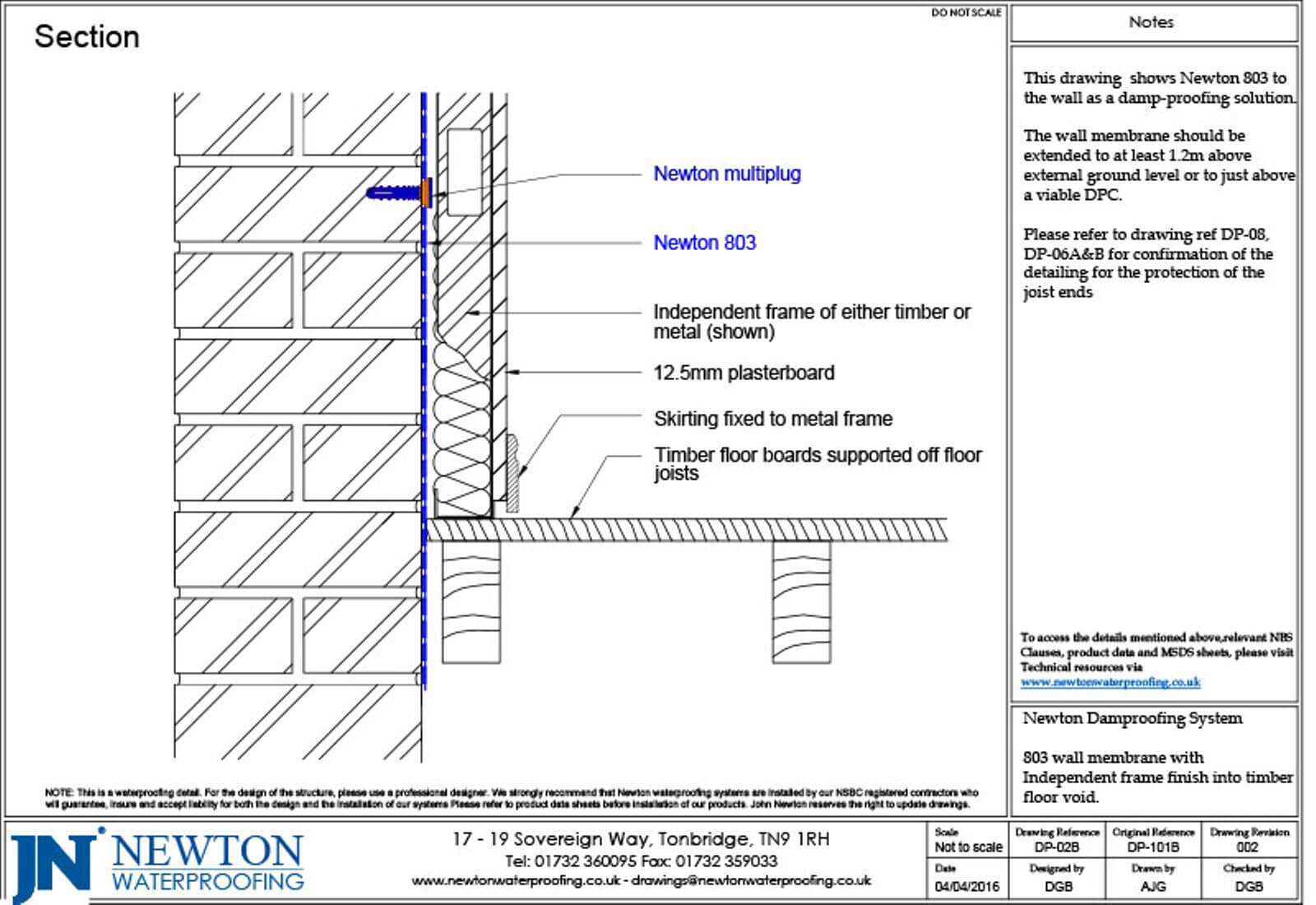

DP-02B

803 Wall membrane with Independent frame into timber floor void

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

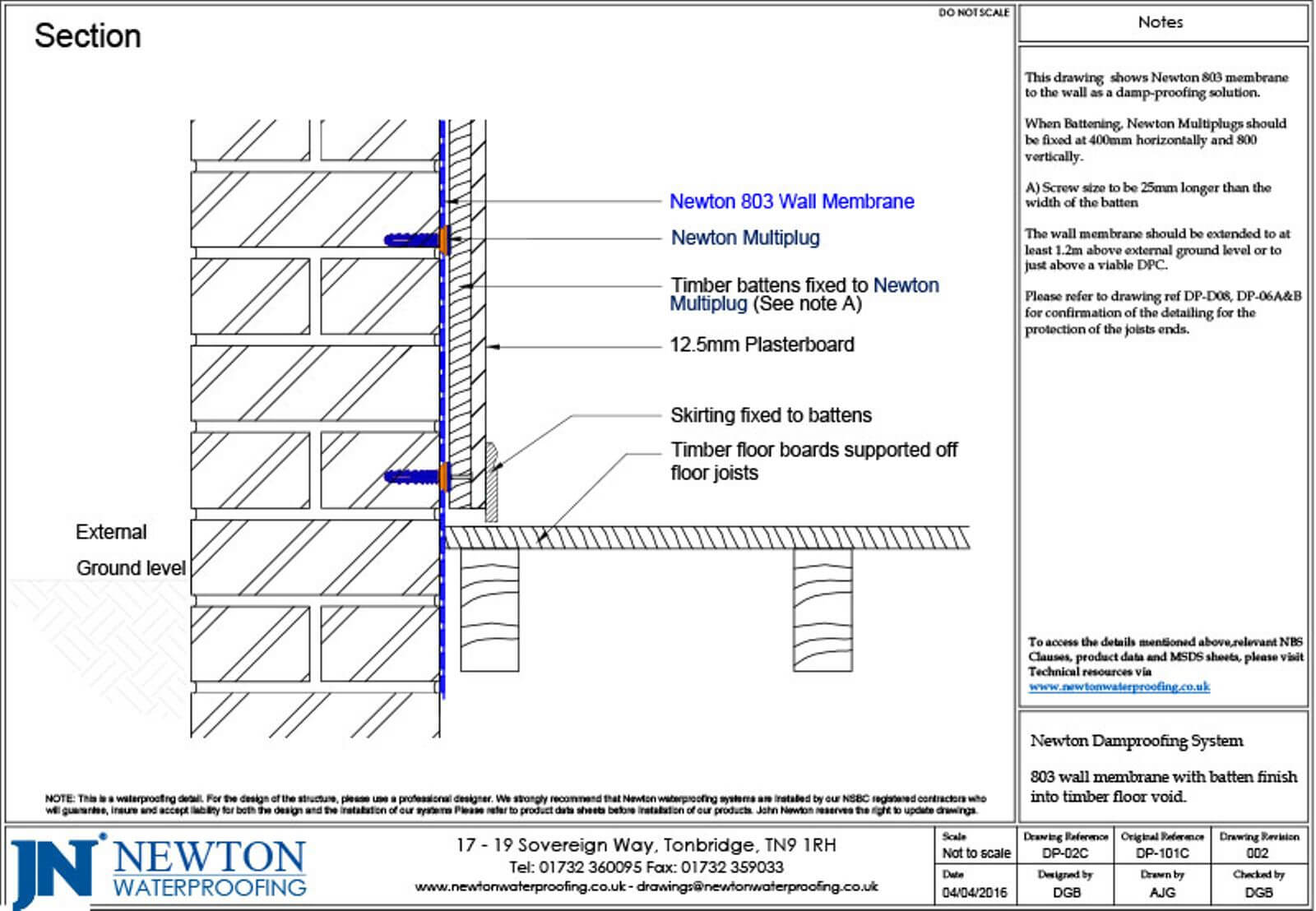

DP-02C

803 Wall membrane with batten finish into timber floor void

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

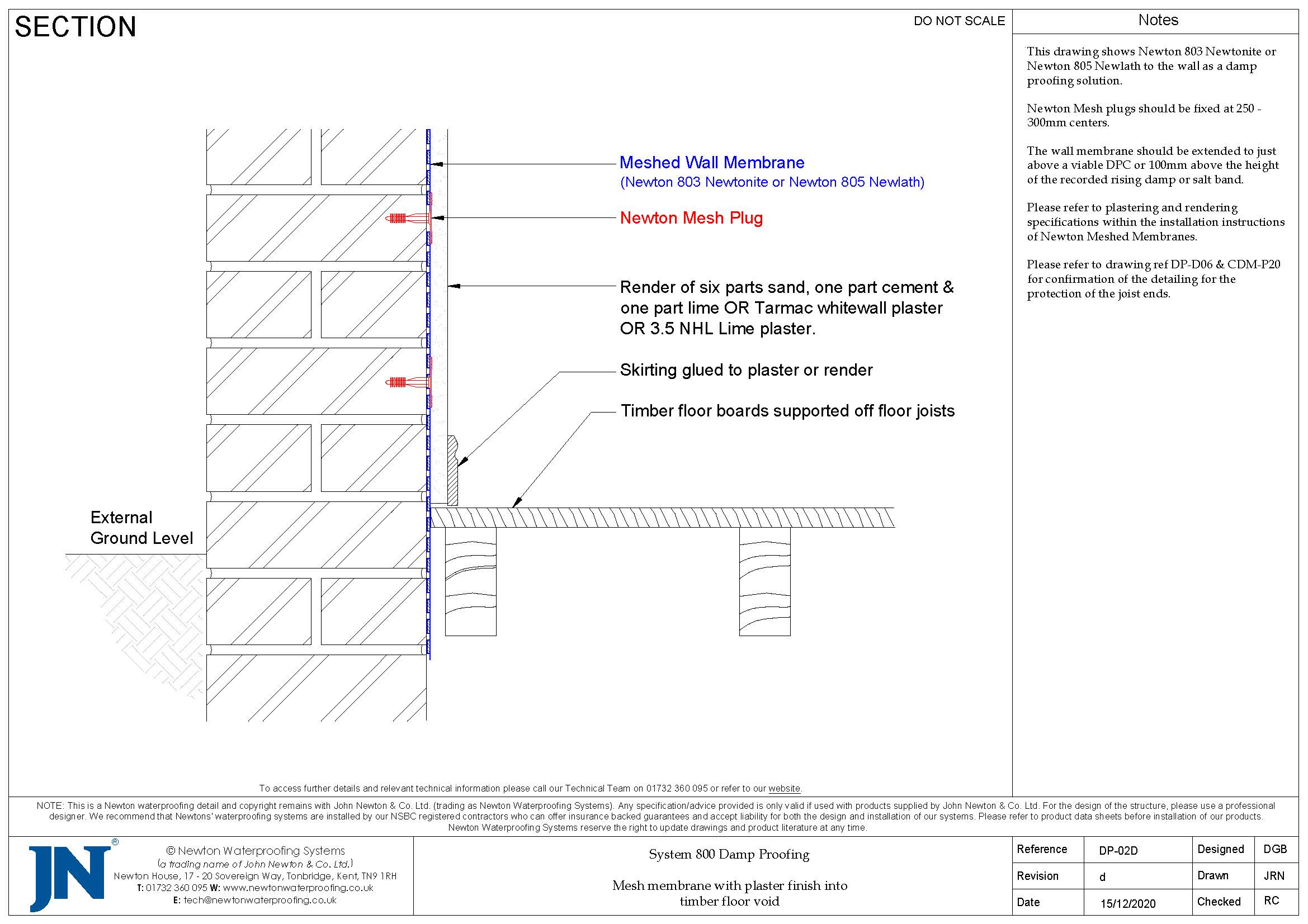

DP-02D

803 Wall membrane with plaster finish into timber floor void

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

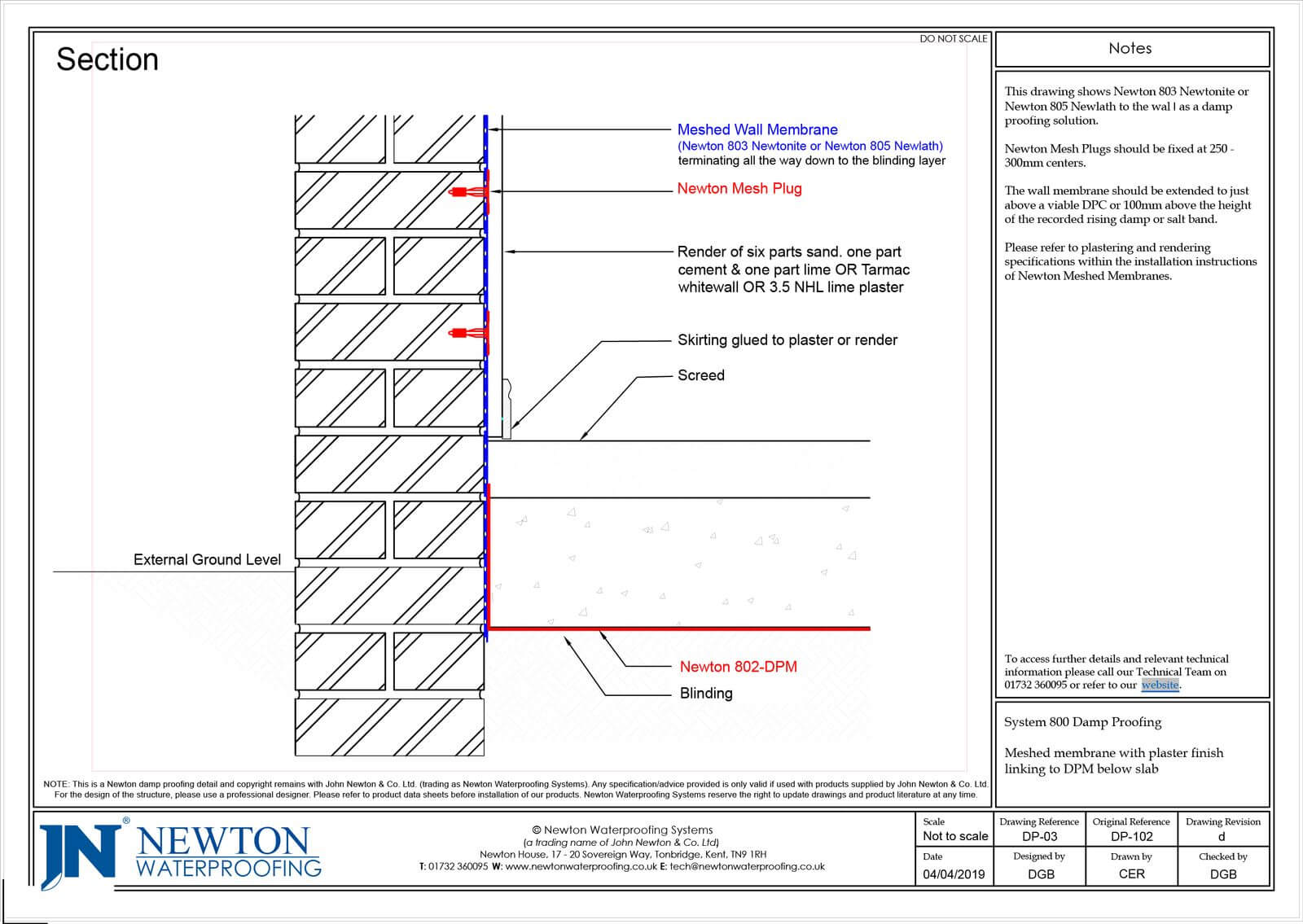

DP-03

Mesh membrane with plaster finish linking to DPM below slab

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

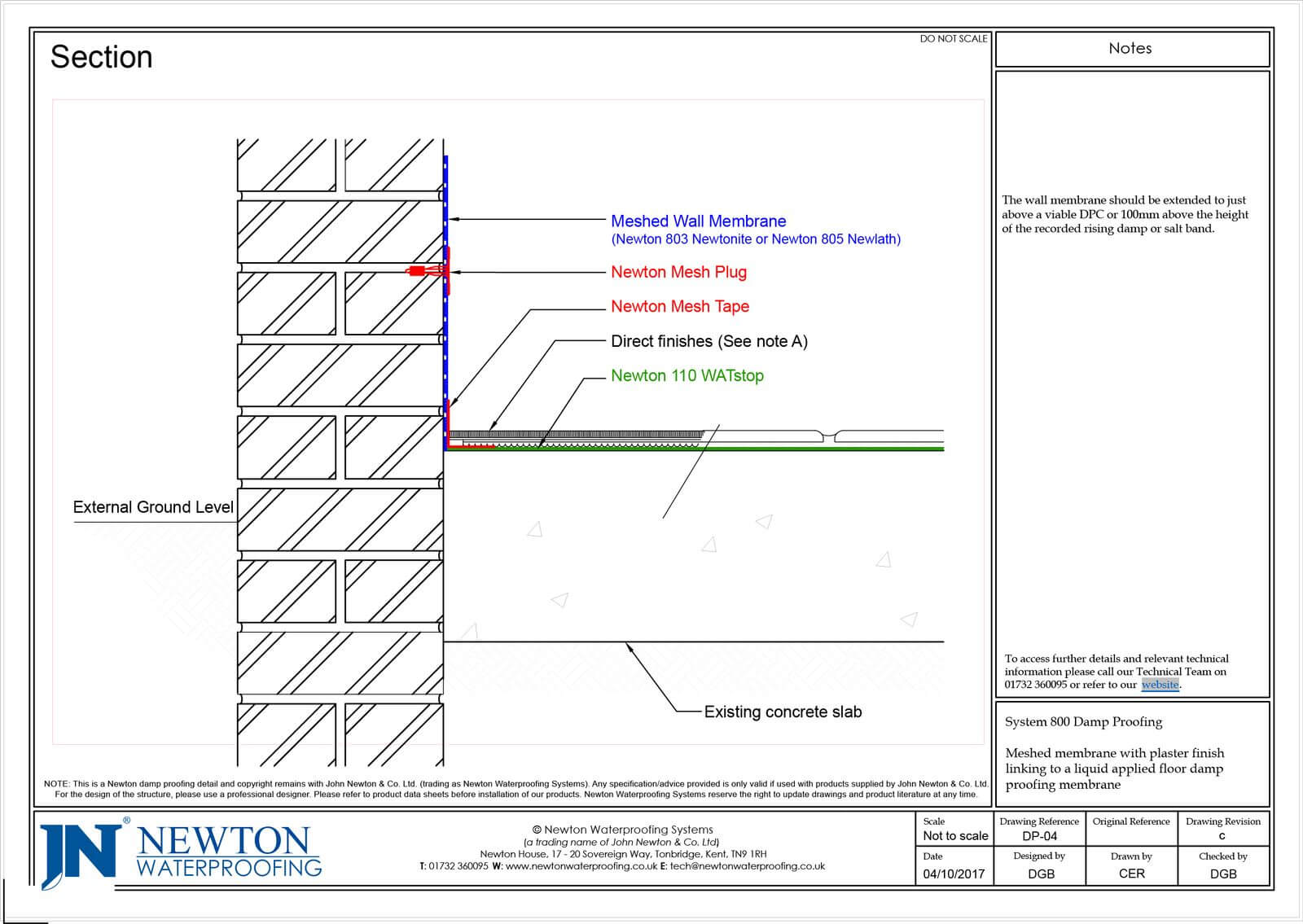

DP-04

Mesh membrane with plaster finish to a liquid applied floor damp proofing membrane

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

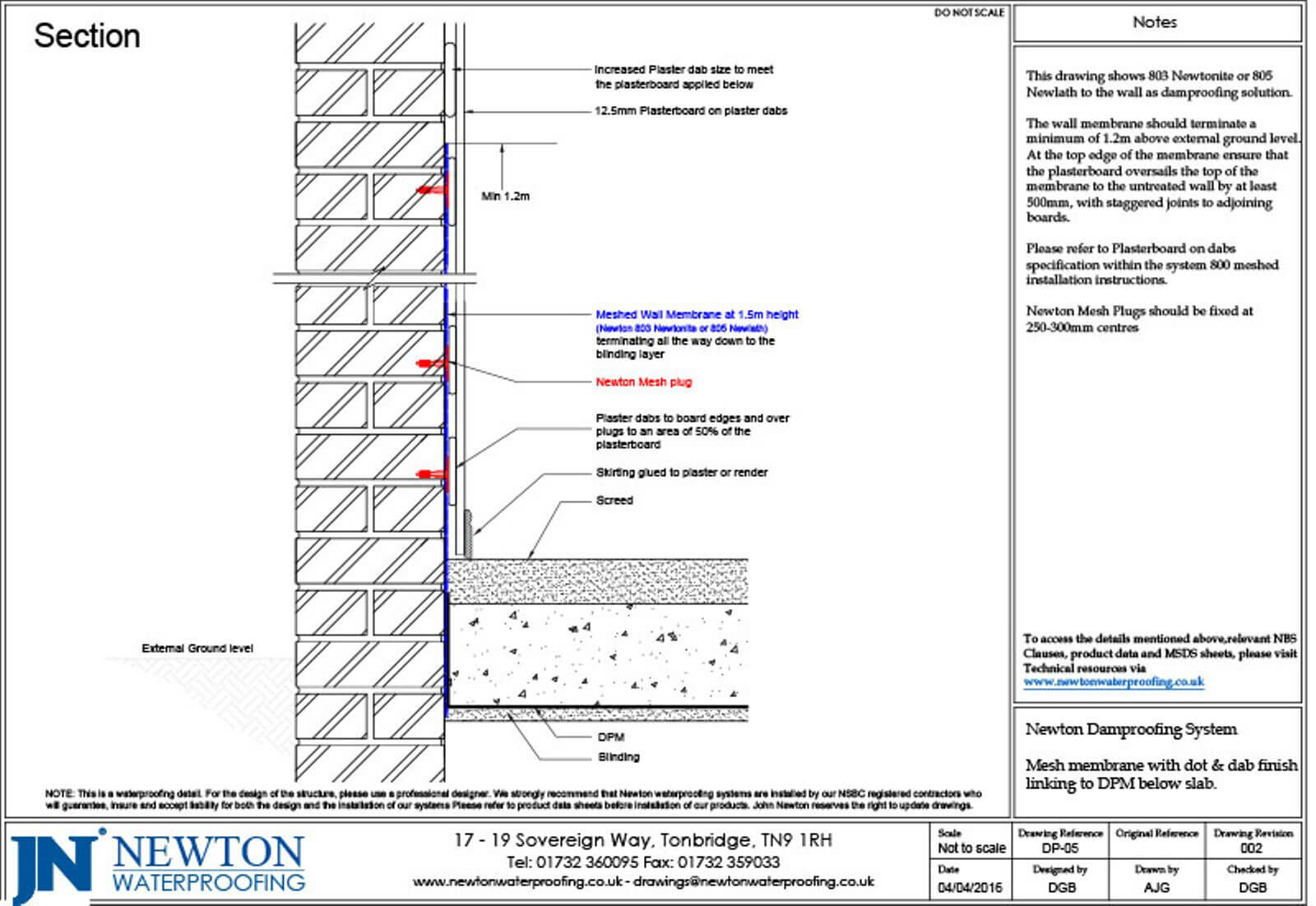

DP-05

Mesh membrane with Dot & Dab finish linking to DPM below slab

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

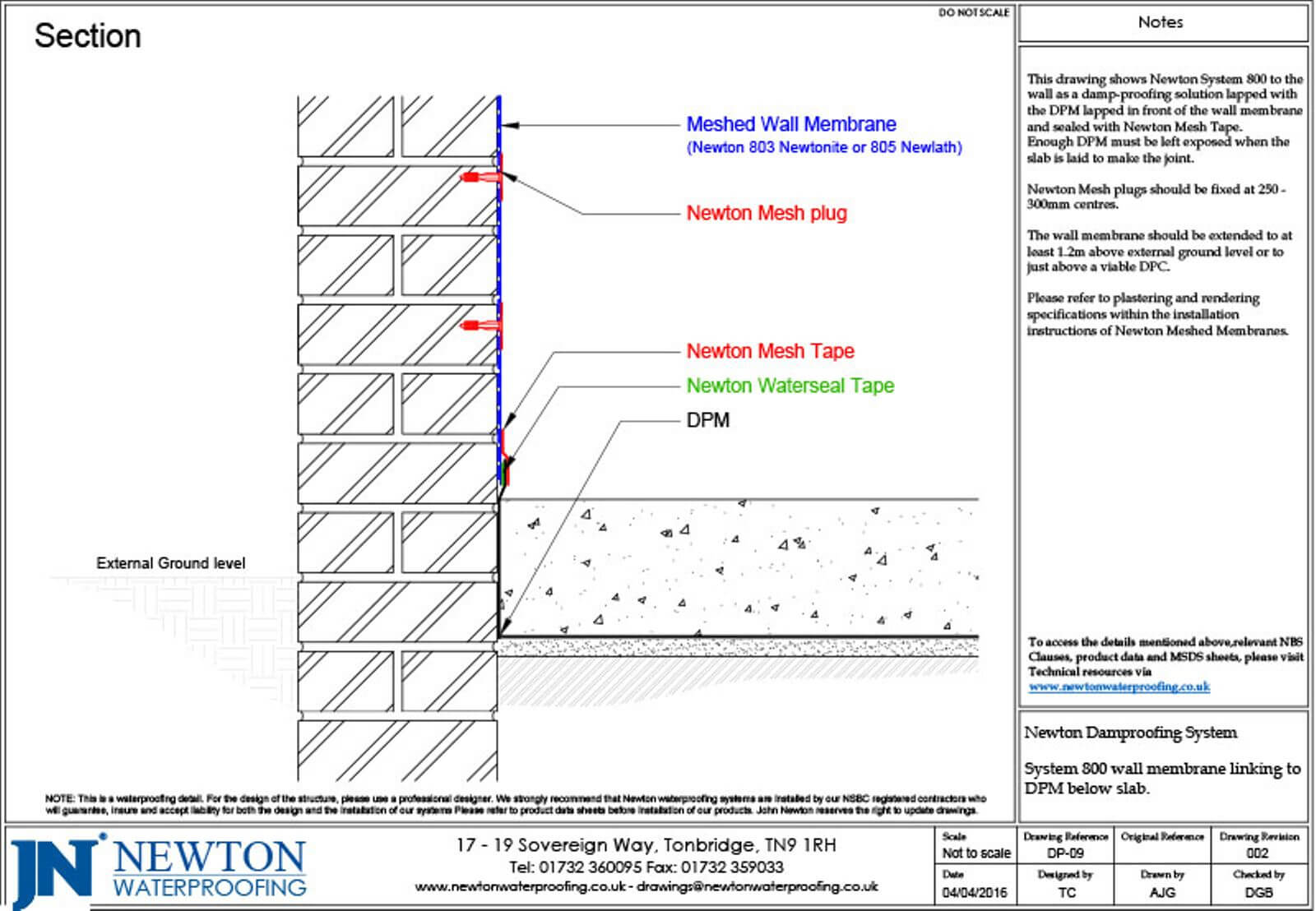

DP-09

System 800 wall membrane linking to DPM below slab

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

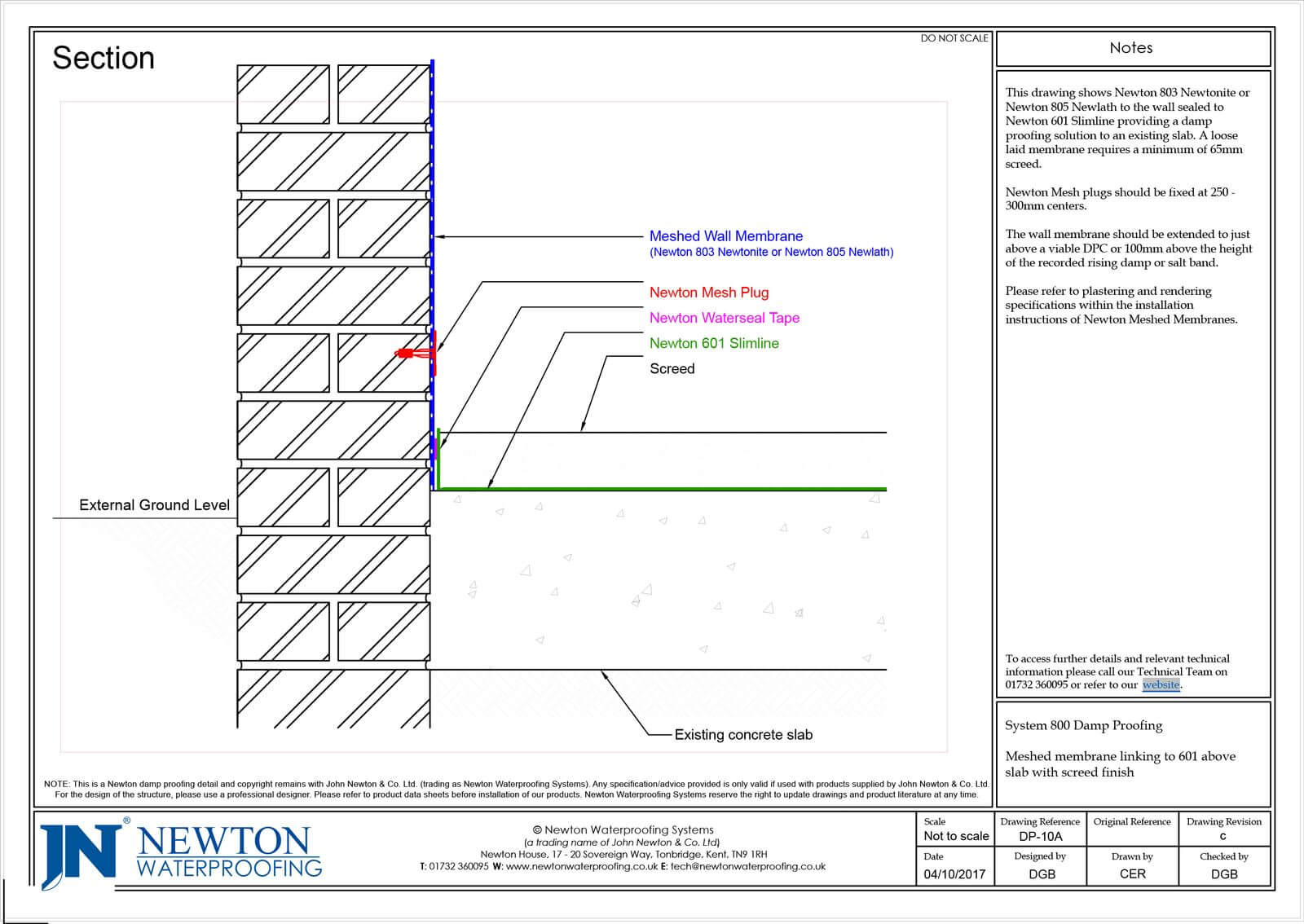

DP-10A

Mesh membrane linking to 601 above slab with screed finish

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)

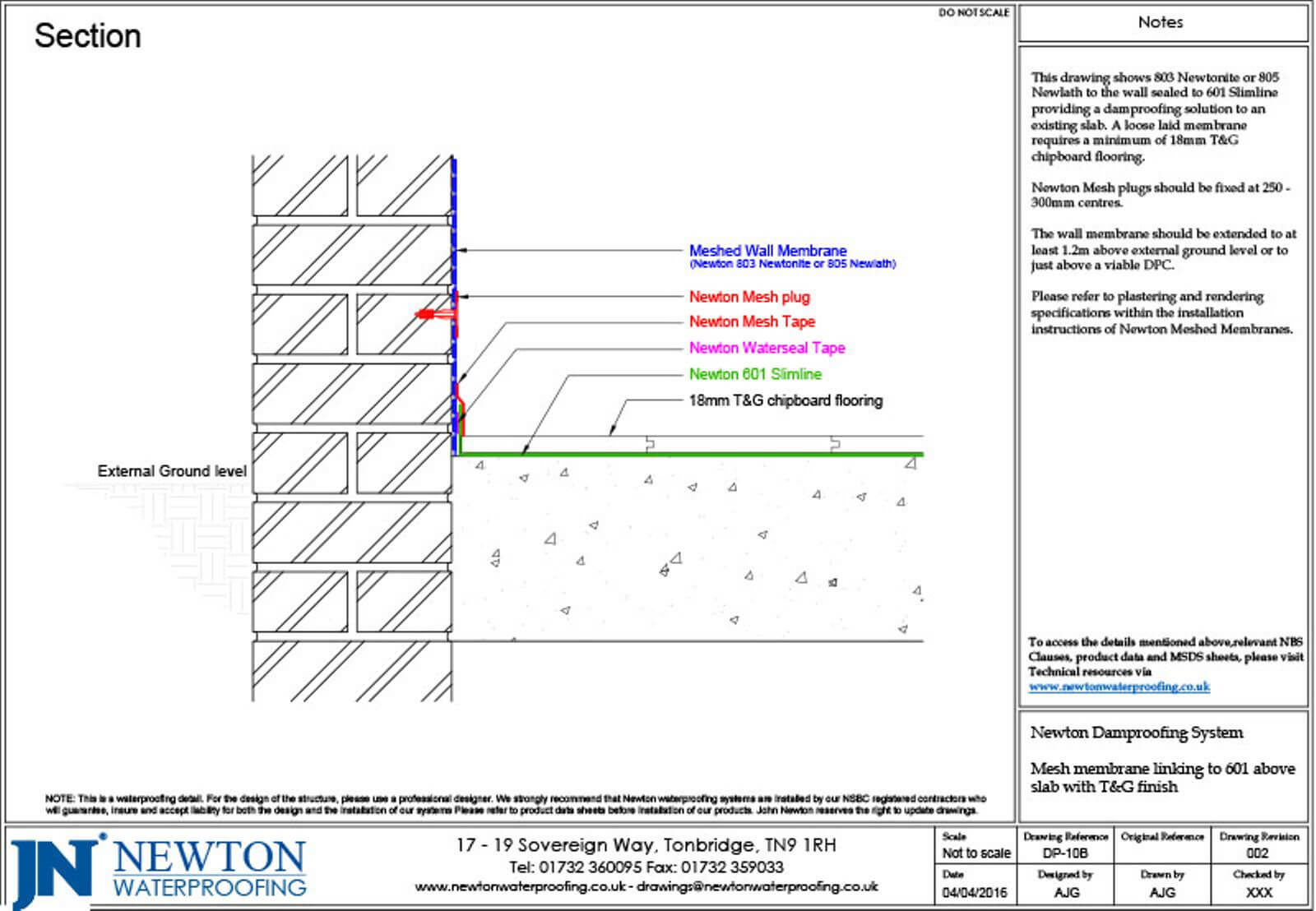

DP-10B

Mesh membrane linking to 601 above slab with T&G finish

PDF icon PDF Drawing DWG icon AutoCAD Drawing (DWG)
